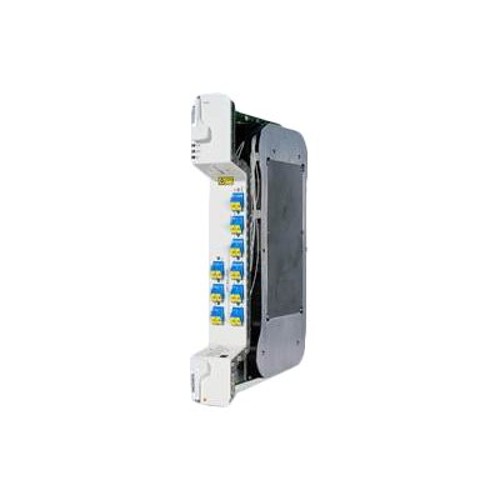

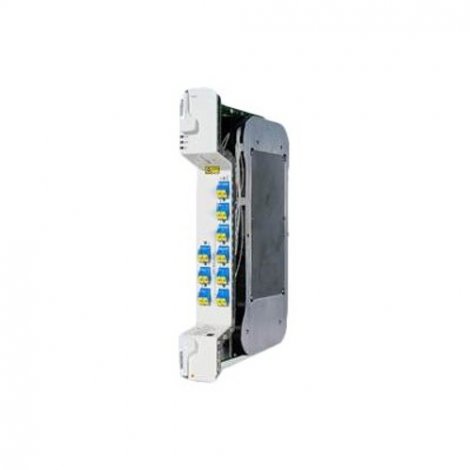

15454-80-WXC-C= - Cisco 15454-80-WXC-C 80-Channel Wavelength Cross-Connect Card

1. Dimensions: 1.6 x 16.2 x 12.7 inches
2. Weight: 2.2 pounds
3. Operating temperature: -40 to 65°C
4. Storage temperature: -40 to 85°C
5. Power consumption: 70W maximum
6. Input voltage: -48VDC nominal
7. Optical connector type: LC/PC
8. Wavelength range: 1528.77 to 1563.86 nm
9. Channel spacing: 50 GHz
10. Maximum insertion loss: 6 dB
11. Maximum power handling: 17 dBm
12. Bit error rate: <10^-15

Helpful notes:
1. The Cisco 15454-80-WXC-C card provides high-density wavelength cross-connect functionality for optical networks.
2. With 80 channels and a channel spacing of 50 GHz, this card is ideal for high-capacity networks.
3. The card is designed for use in the Cisco ONS 15454 Multiservice Transport Platform (MSTP) and can be hot-swapped for easy installation and maintenance.
