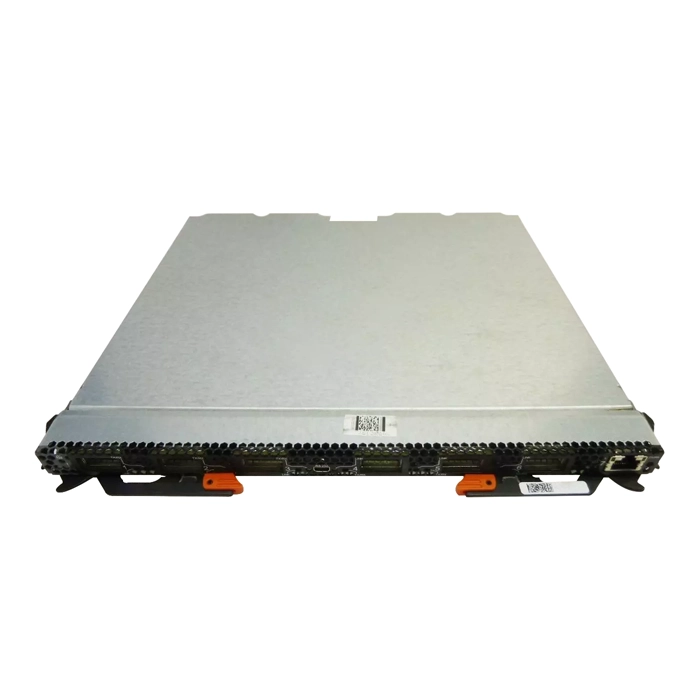

IBM 39Y9265 | NORTEL 10Gb Ethernet BladeCenter Switch

Here are 12 technical specifications for the IBM NORTEL 10GB Ethernet BladeCenter Switch:

1. Switching capacity: 320 Gbps
2. Forwarding rate: 238 Mpps
3. Port configuration: 14x 10 Gigabit Ethernet SFP+ ports
4. Supported protocols: TCP/IP, UDP/IP, ICMP/IP, ARP, RIP, OSPF, BGP, IGMP, PIM-SM, PIM-DM, DVMRP, VRRP, MPLS, LACP, LLDP, STP, RSTP, MSTP, VLAN, QoS, ACL, DHCP, SNTP, SSH, SSL, TACACS+, RADIUS
5. VLAN support: 4,096 VLAN IDs
6. Quality of Service (QoS) support: Yes, with 8 priority queues per port
7. Jumbo frame support: Yes, up to 9,216 bytes
8. Management interface: CLI, SNMP, RMON, Telnet, HTTP, HTTPS
9. Power consumption: 120W maximum
10. Dimensions (WxDxH): 10.4 x 7.2 x 1.1 inches
11. Weight: 2.6 lbs
12. Operating temperature: 0°C to 45°C (32°F to 113°F)

Helpful notes:
1. This switch is designed for use in IBM BladeCenter chassis and is not a standalone switch.
2. The switch supports both IPv4 and IPv6 protocols.
3. The switch can be managed through IBM's BladeCenter Advanced Management Module (AMM) or through a separate management console.
