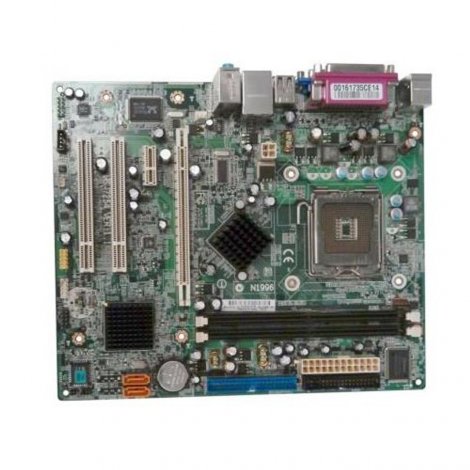

HP 410506-003 | Dx2200 System Board W/lan and Audio

Here are 12 technical specifications for the HP Dx2200 System Board:

1. Processor Socket Type: LGA775 Socket
2. Chipset Type: Intel 945G Express
3. Supported RAM Technology: DDR2 SDRAM
4. Maximum RAM Supported: 4 GB
5. Audio Output: Sound card - integrated
6. Network Interface: Ethernet, Fast Ethernet, Gigabit Ethernet
7. Expansion Slots: 1 x PCIe x16, 1 x PCIe x1, 2 x PCI
8. USB Ports: 8 x USB 2.0 (4 front, 4 rear)
9. Video Output: Intel GMA 950 Dynamic Video Memory Technology 3.0
10. Storage Interfaces: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
11. BIOS Features: ACPI support, DMI 2.0 support, SMBIOS support
12. Form Factor: Micro-ATX

Helpful notes:
1. This refurbished system board is compatible with HP Compaq dx2200 microtower desktops.
2. The integrated sound card and Ethernet capabilities make this board ideal for basic office use.
3. The PCIe x16 slot allows for upgrading to a dedicated graphics card for improved performance in graphic-intensive applications.
