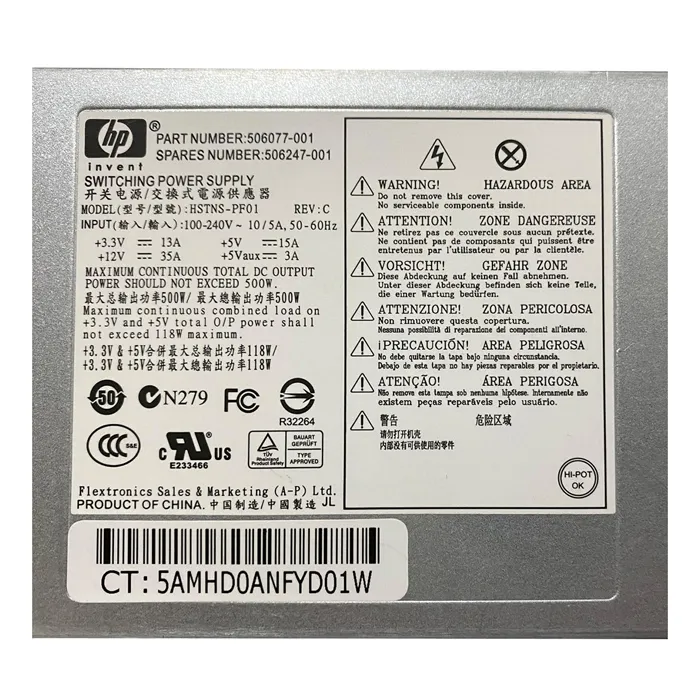

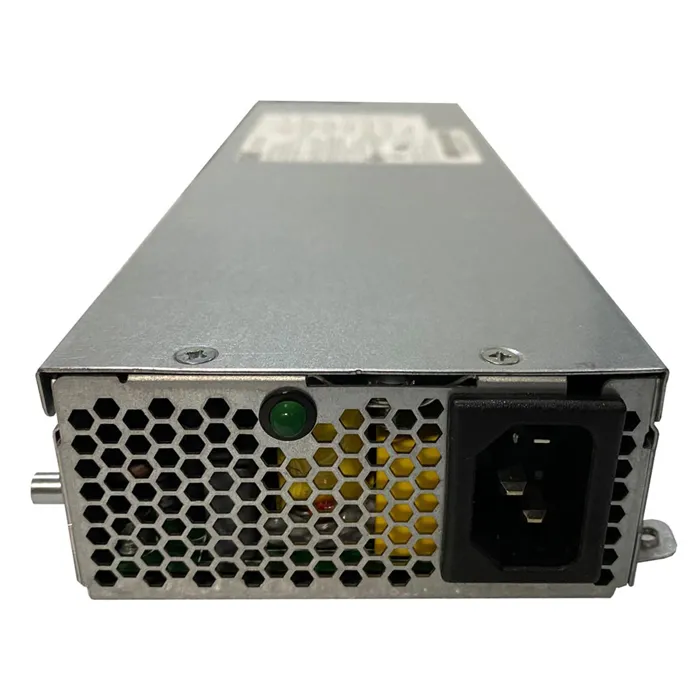

HP HSTNS-PF01 | 500W Power Supply for ProLiant DL320 G6 DL160 G6 DL165 G6

Here are 12 technical specifications for the HSTNS-PF01 HP 500-Watts Power Supply:

1. Input Voltage Range: 100V-240V AC
2. Input Frequency Range: 50-60Hz
3. Output Power Capacity: 500 Watts
4. Efficiency: 80% at 20% load, 85% at 50% load, and 80% at 100% load
5. Cooling System: One fan
6. Connectors: 1x 24-pin ATX main power connector, 1x 4-pin ATX12V power connector, 2x 6-pin PCI Express power connectors, 4x 4-pin internal power connectors, 1x floppy power connector
7. Dimensions (WxDxH): 3.94 x 8.27 x 1.57 inches
8. Weight: 2.65 lbs
9. Operating Temperature: 0°C to 50°C
10. Storage Temperature: -40°C to 70°C
11. Operating Humidity: 10% to 90%, non-condensing
12. MTBF: 100,000 hours at 25°C

Helpful notes:
1. This power supply is compatible with several HP ProLiant server models.
2. The 80 Plus Bronze certification ensures energy efficiency and cost savings.
3. The compact size of this power supply makes it ideal for space-constrained server environments.
