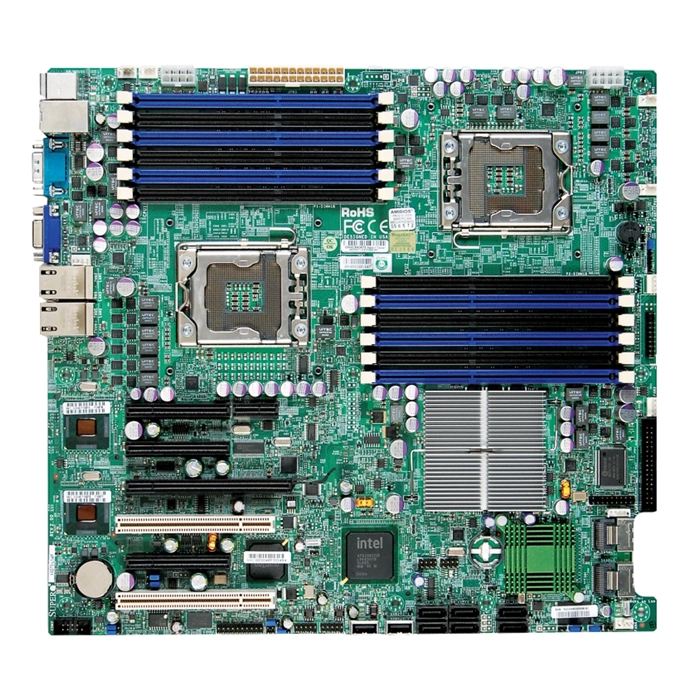

Supermicro X8DTI-F-O | Dual LGA1366/ Intel 5520 / ICH10R + IOH-36D/ V/2GbE/ EATX Server Motherboard

1. Form Factor: Extended ATX (12" x 13")
2. CPU Socket Type: Dual LGA 1366
3. Chipset: Intel 5520 / ICH10R + IOH-36D
4. Memory Slots: 12x 240-pin DDR3 DIMM
5. Maximum Memory Supported: 192GB
6. Memory Type Supported: DDR3 1333/1066/800MHz ECC Registered or Unbuffered DIMMs
7. Expansion Slots: 3x PCI-E 2.0 x16, 2x PCI-E 2.0 x8, 1x PCI-E 2.0 x4 (in x8)
8. SATA Ports: 6x SATA2 3.0Gb/s ports, 2x SATA3 6.0Gb/s ports
9. RAID Support: RAID 0, 1, 5, 10 support (Windows), RAID 0, 1, 10 support (Linux)
10. LAN: 2x Gigabit Ethernet LAN ports
11. USB Ports: 2x USB 2.0 ports, 1x USB 2.0 header
12. Power Connectors: 1x 24-pin ATX power connector, 1x 8-pin ATX 12V power connector

Notes:
1. This motherboard is designed for use in server systems and may not be compatible with consumer-grade components.
2. The large number of memory slots and high maximum memory capacity make this motherboard ideal for memory-intensive applications such as virtualization.
3. The dual LAN ports provide redundancy and can be used for load balancing or failover in a network environment.
