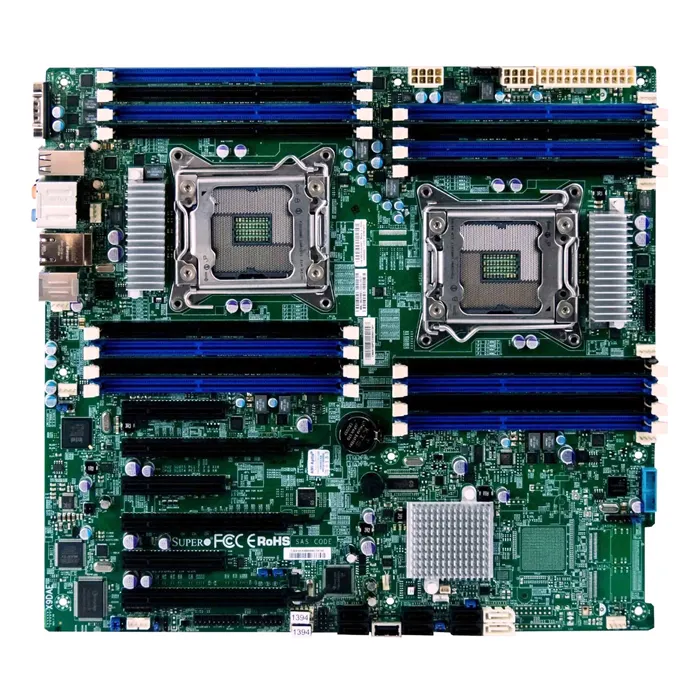

Supermicro X9DAE-O | Dual LGA2011/ Intel C602/ A/2GbE/ EATX Server Motherboard

1. Form Factor: EATX (12" x 13")
2. CPU: Dual Socket R (LGA 2011)
3. Chipset: Intel C602
4. Memory: 16x 240-pin DDR3 DIMM slots, Supports up to 512GB ECC Registered Memory
5. Expansion Slots: 2x PCI-E 3.0 x16 slots, 2x PCI-E 3.0 x8 slots, 1x PCI-E 3.0 x4 (in x8) slot
6. Storage: 10x SATA2 ports, 2x SATA3 ports, 8x SAS2 ports
7. Networking: Dual Gigabit Ethernet LAN ports
8. USB Ports: 4x USB 3.0 ports (2 rear, 2 via header), 8x USB 2.0 ports (4 rear, 4 via header)
9. Audio: 7.1 HD Audio with optical S/PDIF
10. Management: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
11. Power: 24-pin ATX power connector, 8-pin ATX 12V power connector
12. Operating System Support: Windows Server 2012 R2, Windows Server 2012, Red Hat Enterprise Linux 6.4, CentOS 6.4, SuSE Linux Enterprise Server 11 SP2

Notes:
1. This motherboard supports dual CPUs for high-performance server applications.
2. The IPMI 2.0 management feature allows remote management of the server.
3. With support for up to 512GB of ECC Registered Memory, this motherboard is ideal for memory-intensive applications.
