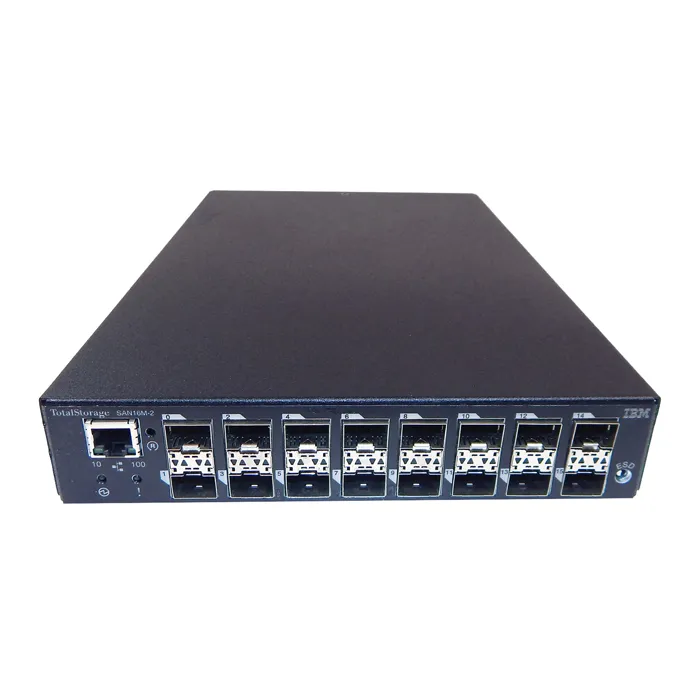

IBM 2026-416 | TotalStorage SAN16M-2 16-Por Fibre Channel 4Gb/s SAN Switch

1. Number of ports: 16
2. Fibre Channel speed: 4 Gb/s
3. Form factor: Rack-mountable
4. Supported protocols: FC-AL, FC-AL-2, FC-FG, FC-FLA, FC-GS-2, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-2, FCP-3, IPFC
5. Maximum frame size: 2112 bytes
6. Maximum fabric latency: 700 ns
7. Supported cabling types: Multimode fiber, single-mode fiber
8. Power supply: Dual, hot-swappable
9. Power consumption: 200W (maximum)
10. Cooling system: Fans, hot-swappable
11. Management interface: CLI, SNMP, web-based GUI
12. Operating temperature: 0°C to 40°C

Helpful notes:
1. The SAN16M-2 supports up to 239 switches in a single fabric.
2. The switch is compatible with IBM TotalStorage SAN Volume Controller.
3. The SAN16M-2 can be configured for non-disruptive firmware upgrades.
