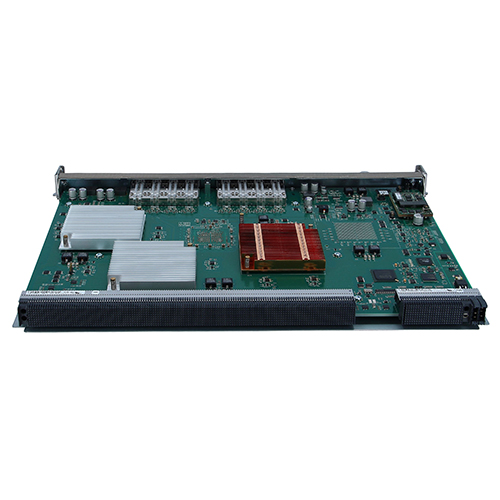

IBM 26K6526 | Nortel Layer 2/3 Copper Ethernet Switch Module

Here are the technical specifications for the IBM Nortel Layer 2/3 Copper Ethernet Switch Module:

1. Ports: 48 10/100/1000Base-T ports
2. Switching capacity: 96 Gbps
3. Forwarding rate: 71.4 Mpps
4. VLAN support: Yes, including IEEE 802.1Q VLAN tagging
5. Layer 2 features: Spanning Tree Protocol, Link Aggregation Control Protocol (LACP), Jumbo Frames support
6. Layer 3 features: IP routing, Static Routing, Routing Information Protocol (RIP) v1/v2, Open Shortest Path First (OSPF), Border Gateway Protocol (BGP)
7. Quality of Service (QoS): IEEE 802.1p, Differentiated Services (DiffServ), traffic shaping, rate limiting
8. Security: Access Control Lists (ACLs), IEEE 802.1x, TACACS+, RADIUS, Secure Shell (SSH), Secure Sockets Layer (SSL)
9. Management: Command Line Interface (CLI), Simple Network Management Protocol (SNMP), Web-based management interface, Telnet, Remote Monitoring (RMON)
10. Power supply: Dual redundant hot-swappable power supplies
11. Dimensions: 14.2 x 16.8 x 1.2 inches (36.1 x 42.7 x 3.0 cm)
12. Weight: 9.5 lbs (4.3 kg)

Helpful notes:
1. This switch module is compatible with IBM BladeCenter and Flex System chassis.
2. The hot-swappable power supplies provide redundancy and ensure uninterrupted operation.
3. The Layer 3 features make this switch module suitable for use as a router in small to medium-sized networks.
