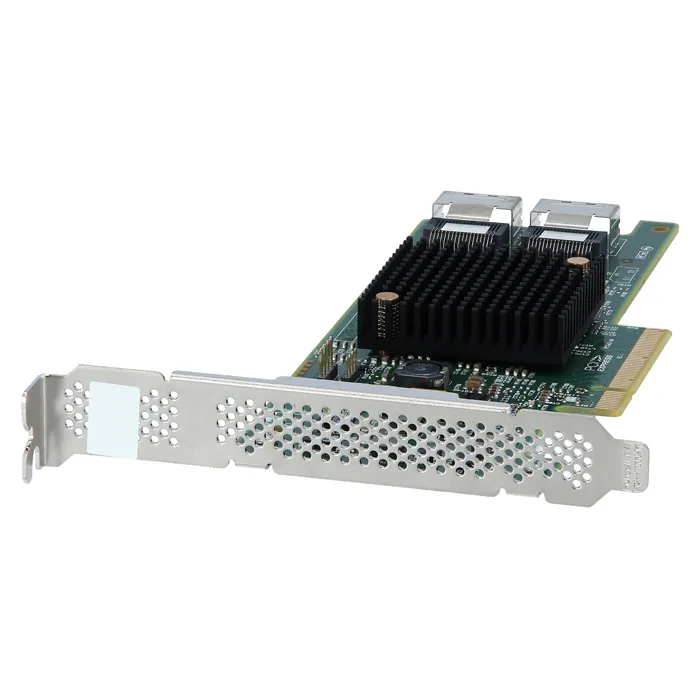

375-3536-02 - Sun StorageTek 8-Port SAS RAID Host Bus Adapter

Here are the technical specifications for the Sun StorageTek 8-Port SAS RAID Host Bus Adapter:

1. Interface Type: PCIe 2.0 x8
2. Data Transfer Rate: 6 Gb/s per port
3. RAID Levels: 0, 1, 1E, 10
4. Supported Devices: SAS and SATA hard drives, solid state drives
5. Max Storage Devices Qty: 122
6. Processor: LSI SAS2008
7. Cache Memory: 512 MB DDR2 SDRAM
8. Form Factor: Plug-in card
9. OS Required: Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Microsoft Windows Server
10. Dimensions (WxDxH): 6.6 in x 2.5 in
11. Weight: 3.17 oz
12. Power Consumption: 8.4 Watt (maximum)

Helpful notes:
1. This HBA supports both SAS and SATA drives, providing flexibility in storage options.
2. The LSI SAS2008 processor ensures high performance and reliability.
3. With support for up to 122 storage devices, this HBA is ideal for large-scale storage solutions.
