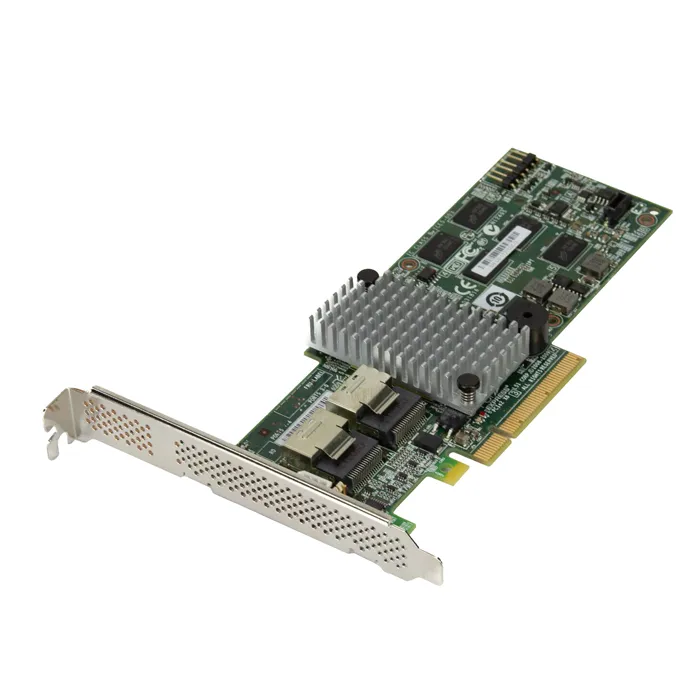

3KDWX | DELL 3KDWX Perc H755 12gb/s Pcie 40 Sas Raid Controller With 8gb Nv Cache System Pull

Here are the technical specifications for the DELL 3KDWX Perc H755 12gb/s Pcie 40 Sas Raid Controller with 8gb Nv Cache System Pull:

1. Interface Type: PCI Express 3.0 x8
2. Data Transfer Rate: 12 Gb/s
3. Supported Devices: Hard drive, Solid state drive
4. RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
5. Cache Memory: 8GB NV Cache
6. Processor: LSI SAS3108
7. Number of Ports: 2 x 4 Internal Mini SAS HD SFF8643
8. Supported Operating Systems: Microsoft Windows, Red Hat Linux, SUSE Linux, VMware ESXi
9. Dimensions: 6.6 x 2.7 in
10. Weight: 0.5 lbs
11. Power Consumption: 10.5W
12. Cooling System: Passive Heatsink

Helpful Notes:
1. The DELL 3KDWX Perc H755 is a high-performance RAID controller that supports a wide range of RAID levels and devices.
2. The 8GB NV Cache provides fast and efficient data access and storage.
3. The passive heatsink ensures reliable and quiet operation.
