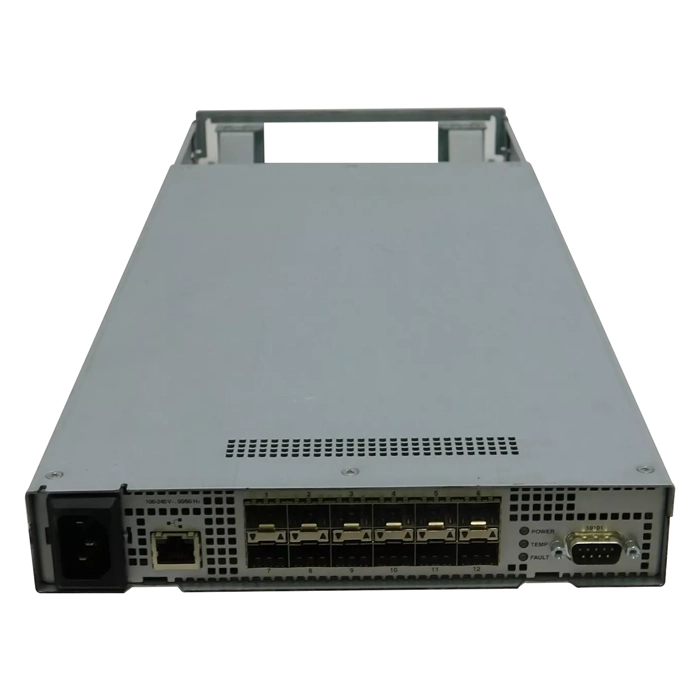

HP 408514-001 | XL852 12-Port Fiber Channel Back End Dual Loop Switch Module

1. Port Quantity: 12
2. Connectivity Technology: Wired
3. Data Transfer Rate: 2.125 Gbps
4. Fibre Channel Class Support: Class 2, Class 3
5. Max Transfer Distance: 500m
6. Expansion Slots: 2 x SFP (mini-GBIC)
7. Interfaces: 12 x Fibre Channel
8. Supported Protocols: FC-AL, FC-FLA, FC-FS, FC-GS-2, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SB-2, FC-SW-2, FC-Tape, FC-VI, FC-SP, FC-BB-2, FC-FS-2, FC-GS-3, FC-PI-4
9. Features: Full duplex capability, auto-sensing per device, manageable, firmware upgradable, SNTP support
10. Power Consumption: 50W
11. Dimensions (WxDxH): 16.9 in x 12.1 in x 1.1 in
12. Weight: 3.75 lbs

Notes:
1. This module is designed for use with HP StorageWorks SAN switches and directors.
2. The dual loop design provides redundancy for high availability.
3. The module is hot-swappable for easy installation and maintenance.
