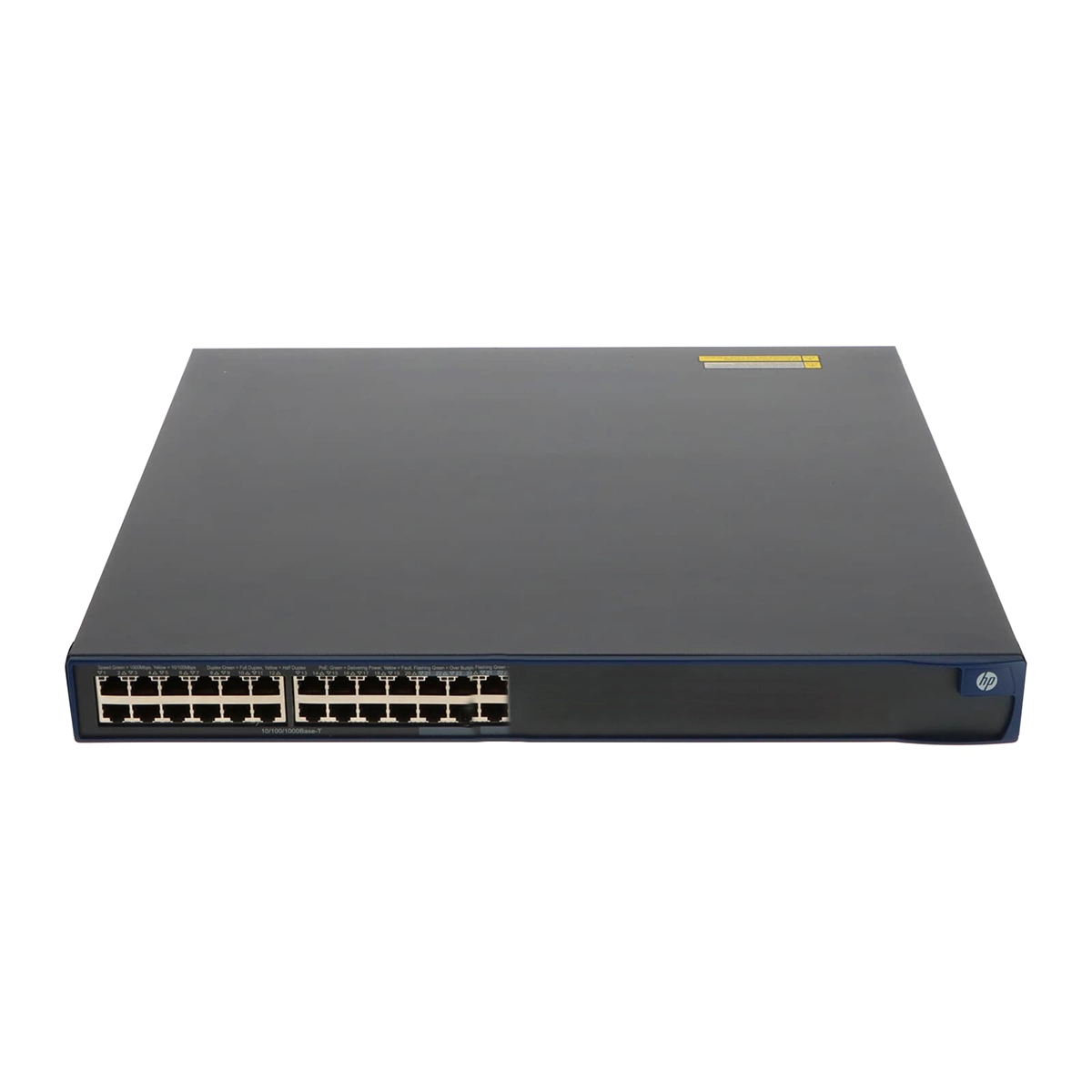

HP 409771-001 | Voltaire InfiniBand 24 x Ports Managed Switch

Here are the technical specifications for the HP Voltaire InfiniBand 24-Port Managed Switch:

1. Switching capacity: 480 Gbps
2. Port configuration: 24x 4x DDR InfiniBand ports
3. Management: CLI, SNMP, web-based management
4. Power supply: Dual redundant power supplies
5. Cooling: Redundant fan modules
6. Latency: 140 ns
7. Forwarding rate: 357 Mpps
8. Jumbo frames: Up to 9.6 KB
9. Rack-mountable: Yes, 1U form factor
10. Supported protocols: InfiniBand, Ethernet, Fibre Channel over InfiniBand (FCoIB)
11. Operating temperature: 0°C to 40°C
12. Operating humidity: 10% to 90% non-condensing

Helpful notes:
1. This switch is ideal for high-performance computing and data center applications.
2. It supports up to 24 InfiniBand connections, which can be used for storage, networking, and clustering.
3. The redundant power supplies and fan modules ensure high availability and reliability.
