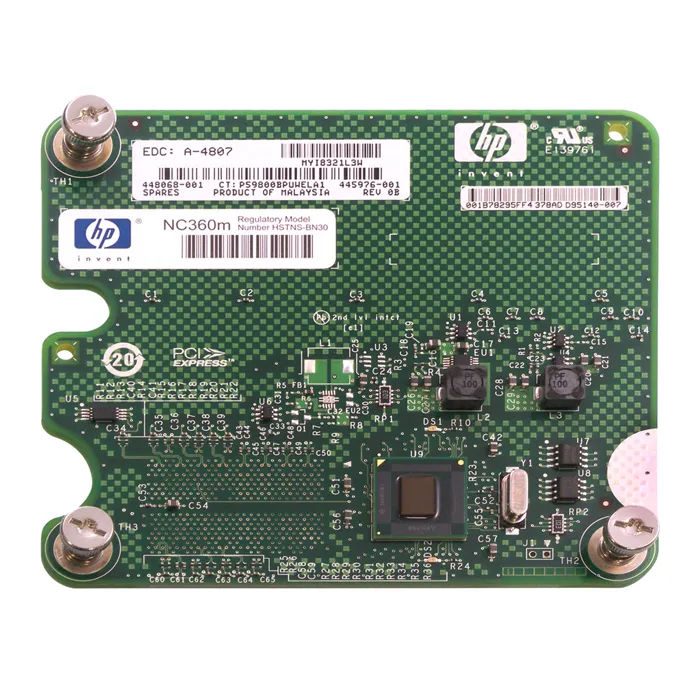

HP 448068-001 | NC360M PCI-Express 1GbE 2-Port Mezzinine Fibre Channel Adapter Network Interface Card for c-Class BladeSystem

Here are 12 technical specifications for the HP NC360M PCI-Express 1GbE 2-Port Mezzanine Fibre Channel Adapter Network Interface Card for HP c-Class BladeSystem:

1. Interface Type: PCI Express x4
2. Ports: 2 x 1 Gb Ethernet
3. Connectivity Technology: Wired
4. Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
5. Fibre Channel: FC-AL, FC-AL-2, FC-BB, FC-FLA, FC-GS-2, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SW-2, FC-SW-3, FC-VI
6. Data Transfer Rate: 1 Gbps
7. Processor: 1 x 5709 Broadcom
8. RAM: 256 MB
9. Features: Wake on LAN (WoL), PXE support, Jumbo Frames support
10. Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.3ae
11. Designed for: HPE BladeSystem c3000, c7000
12. Dimensions (WxDxH): 3.5 in x 7.5 in x 1.2 in

Helpful notes:
1. This adapter is designed for use with HP BladeSystem c3000 and c7000 enclosures.
2. The Wake on LAN feature allows a computer to be powered on remotely.
3. Jumbo Frames support allows for larger Ethernet frames to be transmitted, improving network performance.
