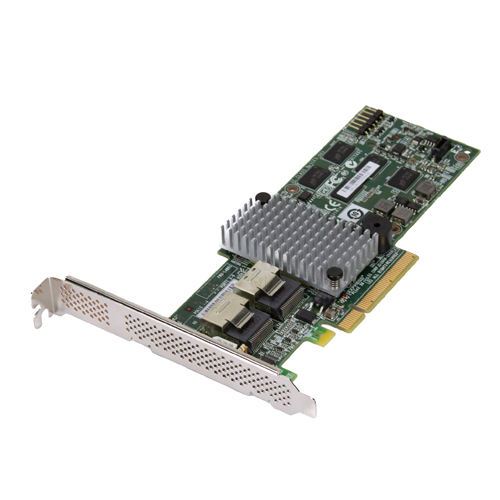

IBM 44W3394 | ServeRAID M5200 Series Flash/RAID 5 Upgrade for System x

1. Interface Type: PCIe 3.0 x8
2. Data Transfer Rate: 12 Gb/s SAS
3. RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
4. Cache Memory Size: 1 GB
5. Supported Devices: Hard drive, solid state drive
6. Compatible Operating Systems: Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux 6, SUSE Linux Enterprise Server 11, VMware ESXi 5.1, VMware ESXi 5.5
7. Dimensions: 6.6 x 2.7 inches
8. Weight: 0.4 lbs
9. Processor: PowerPC 476 dual-core 1.2 GHz
10. Number of Ports: 2 internal mini-SAS HD SFF8643
11. Power Consumption: 6.5W
12. Cooling System: Passive heatsink

Notes:
1. The ServeRAID M5200 Series supports up to 64 virtual drives and up to 64 logical drives per controller.
2. The controller can be configured to use either SAS or SATA drives, or a combination of both.
3. The flash/RAID 5 upgrade provides additional performance and data protection capabilities to the ServeRAID M5200 Series controller.
