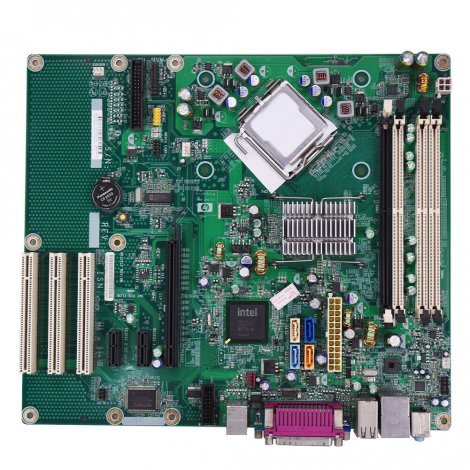

462431-001 - HP System Board (Motherboard) EagleLake Saturn for CMT DC7900

Here are the technical specifications for the HP System Board (Motherboard) EagleLake Saturn for CMT DC7900:

1. Chipset: Intel Q45 Express
2. Socket Type: LGA775 Socket
3. Supported Processors: Intel Core 2 Quad, Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron Dual-Core
4. Memory: 4 DDR2 DIMM slots, up to 8GB maximum memory supported
5. Expansion Slots: 1 PCI Express x16, 2 PCI Express x1, 1 PCI
6. Audio: Integrated High-Definition audio with ADI1884 codec
7. LAN: Integrated Intel 82567LM Gigabit Ethernet
8. USB Ports: 10 USB 2.0 ports (4 front, 6 rear)
9. SATA Ports: 6 SATA ports (3 Gb/s)
10. Graphics: Integrated Intel Graphics Media Accelerator 4500
11. Form Factor: ATX
12. Power Connectors: 24-pin ATX main power connector, 4-pin ATX 12V power connector

Helpful Notes:
1. This motherboard is compatible with HP Compaq dc7900 Convertible Minitower (CMT) desktop computers.
2. The Intel Q45 Express chipset provides advanced features such as Intel vPro technology and Intel Active Management Technology.
3. The integrated Intel Graphics Media Accelerator 4500 supports DirectX 10 and OpenGL 2.0 for basic gaming and multimedia tasks.
