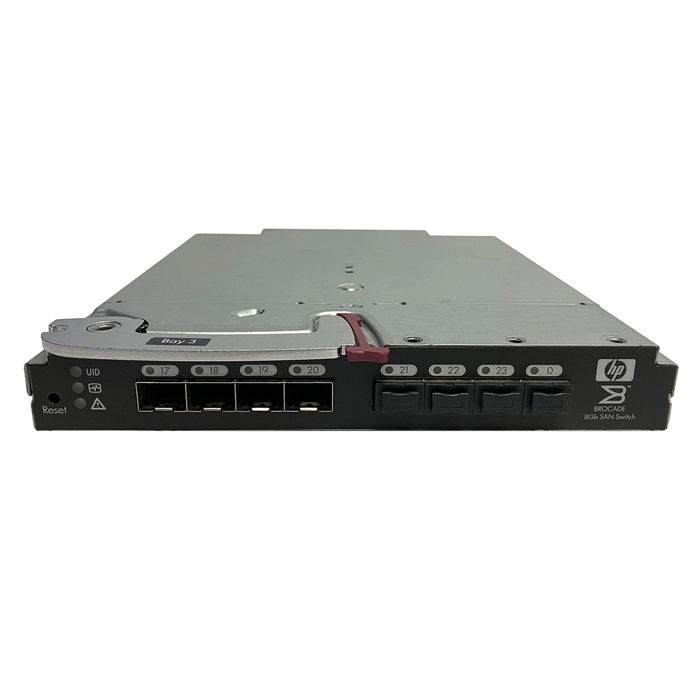

HP 489866-002 | 8/24C 8Gb 24-Ports Blade System Power Pack+ San Switch

Technical Specifications:
- Switch type: Fabric
- Ports: 24 x 8Gb Fibre Channel SFP+
- Maximum frame size: 2112-byte
- Aggregate bandwidth: 384 Gbps
- Latency: 700 ns
- Buffer credits: 512 per port
- Supported protocols: FC-AL, FC-AL-2, FC-BB, FC-DA, FC-FLA, FC-FS, FC-GS-2, FC-GS-3, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SB-2, FC-SW-2, FC-SW-3, FC-SW-4, FC-Tape, FC-VI, FC-SP, FCP, FCP-2, FCP-3, FC-PI, FC-LS, FC-MI-2, FC-SP-2, FC-SP-3, FC-LS-2, FC-BB-2, FC-FS-2, FC-SW-5
- Management: CLI, SNMP, Telnet, HTTP, SMI-S, RADIUS, SSH, SSL
- Power supply: 2 x hot-plug power supply - 2000 Watt
- Voltage required: AC 120/230 V (50/60 Hz)
- Dimensions: 14.4 x 16.5 x 1.1 in
- Weight: 10.14 lbs

Helpful Notes:
- The HP 8/24C San Switch is designed to provide high-performance connectivity for BladeSystem c-Class enclosures.
- It supports advanced features such as Virtual Fabrics and Adaptive Networking.
- The switch is compatible with a wide range of operating systems and hypervisors.
