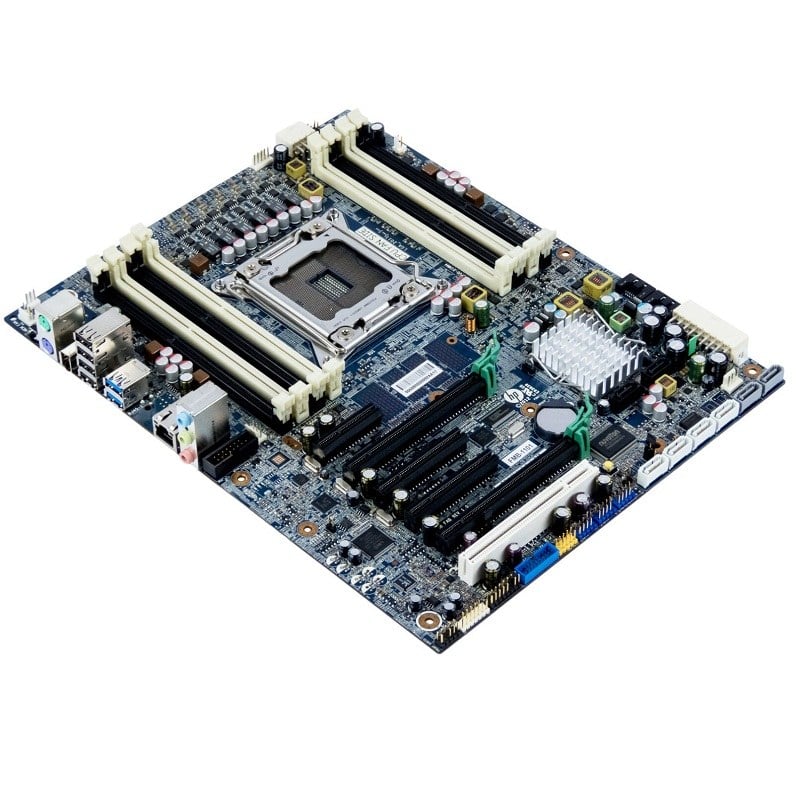

HP 619557-001 | System Board (Motherboard) for Z420 Series Workstation

Technical Specifications:
1. Processor Socket Type: LGA 2011 Socket
2. Chipset Type: Intel C602
3. Maximum Supported Memory: 64 GB
4. Memory Type: DDR3 SDRAM
5. Number of Memory Slots: 8
6. Expansion Slots: 2 x PCI Express Gen3 x16, 1 x PCI Express Gen3 x8, 1 x PCI Express Gen2 x8, 1 x PCI Express Gen2 x4
7. Storage Interfaces: 2 x SATA-600, 4 x SATA-300
8. USB Ports: 14 x USB 2.0, 2 x USB 3.0
9. Ethernet Controller: Intel 82579LM
10. Audio Output: Integrated High Definition Audio
11. Graphics Controller: NVIDIA Quadro 2000
12. Form Factor: ATX

Helpful Notes:
1. This motherboard is compatible with HP Z420 series workstations only.
2. It supports Intel Xeon E5-1600 and E5-2600 series processors.
3. The motherboard has a built-in NVIDIA Quadro 2000 graphics controller.
