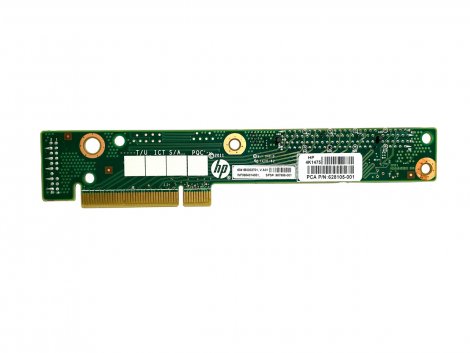

667866-001 - HP X8 Low Profile Riser Board for ProLiant Dl360p G8 Server

1. Compatible with: HP ProLiant DL360p G8 server
2. Expansion slots: 1 x PCIe 3.0 x8
3. Form factor: Low profile
4. Connector(s): 1 x 36 pin mini-SAS
5. Supported operating systems: Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), Oracle Solaris, VMware
6. Dimensions (WxDxH): 2.5 in x 8.5 in x 1.5 in
7. Weight: 0.25 lbs
8. Power consumption: 5W
9. Operating temperature: 50°F to 95°F (10°C to 35°C)
10. Storage temperature: -40°F to 158°F (-40°C to 70°C)
11. Humidity range: 10% to 90% non-condensing
12. Compliance standards: FCC Class A certified, VCCI, C-Tick, BSMI, EN 60950, EN55022, ICES-003, IEC 60950, EN55024, CISPR 22, RoHS

Notes:
1. The low profile design allows for more expansion options in small form factor servers.
2. The mini-SAS connector provides high-speed data transfer for storage devices.
3. The PCIe 3.0 x8 slot offers fast data transfer rates for high-performance computing applications.
