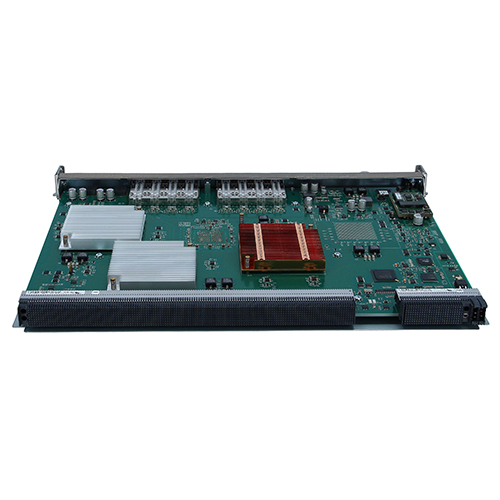

815264-001 - HP Brocade 16GB/12 Fibre Channel SAN Switch Module

Here are 12 technical specifications for the HP Brocade 16GB/12 Fibre Channel SAN Switch Module:

1. Ports: 12 x 16 Gbps Fibre Channel SFP+
2. Switching capacity: 384 Gbps
3. Forwarding rate: 571 Mpps
4. Latency: 700 ns
5. Maximum frame size: 2112 bytes
6. Supported protocols: FC-AL, FC-AL-2, FC-BB-2, FC-FG, FC-FLA, FC-GS-4, FC-MI, FC-PH, FC-PLDA, FC-SB-2, FC-SW-4, FC-SW-5, FC-Tape, FCP, FCP-2, FCP-3
7. Management: CLI, HTTP, SNMP, Telnet
8. Power consumption: 40W
9. Operating temperature: 0°C to 55°C
10. Operating humidity: 10% to 85% (non-condensing)
11. Dimensions (WxDxH): 10.6 in x 7.4 in x 1.2 in
12. Weight: 2.2 lbs

Helpful notes:
1. The HP Brocade 16GB/12 Fibre Channel SAN Switch Module is designed for high-performance storage networking in data centers.
2. The switch module supports up to 12 Fibre Channel SFP+ ports, allowing for flexible connectivity options.
3. With a switching capacity of 384 Gbps and a forwarding rate of 571 Mpps, this switch module is capable of handling high volumes of data traffic.
