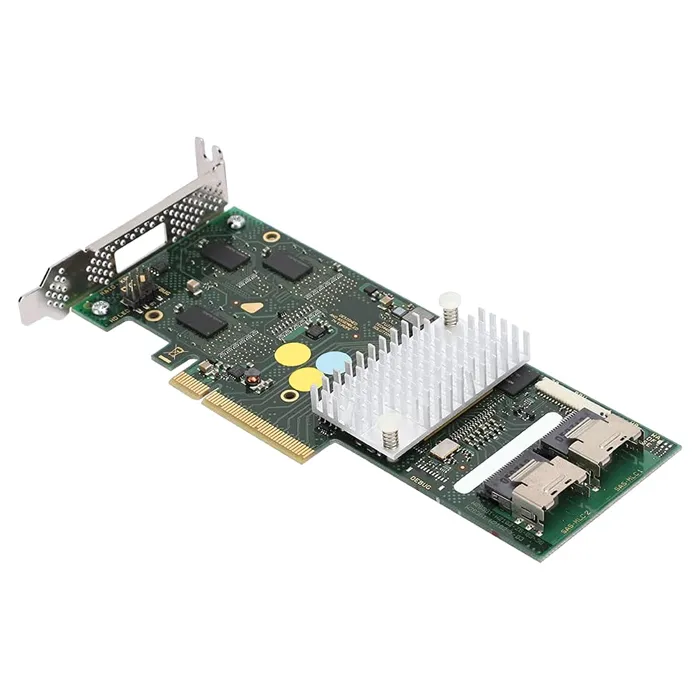

9270CV-8I - LSI MegaRAID SAS / SATA 6GB/s 1GB Cache PCI-Express 3.0 RAID Controller

1. Interface: PCI-Express 3.0 x8
2. Data Transfer Rate: 6GB/s per port
3. RAID Levels: 0, 1, 5, 6, 10, 50, 60
4. Cache Memory: 1GB DDR3 SDRAM
5. Supported Devices: SAS / SATA (both 3GB/s and 6GB/s)
6. Max Number of Devices Supported: 128
7. RAID Management Software: MegaRAID Storage Manager
8. Operating Temperature: 0°C to 55°C
9. Dimensions: 6.6 x 2.7 in (168 x 68.9 mm)
10. Operating System Support: Windows, Linux, VMware
11. Power Consumption: 11W
12. MTBF: 1,200,000 hours

Notes:
1. The controller supports hot-swapping of drives for easy maintenance.
2. The MegaRAID Storage Manager software allows for easy configuration and monitoring of the RAID array.
3. The controller is compatible with a wide range of server motherboards and can be used in both tower and rack-mount servers.
