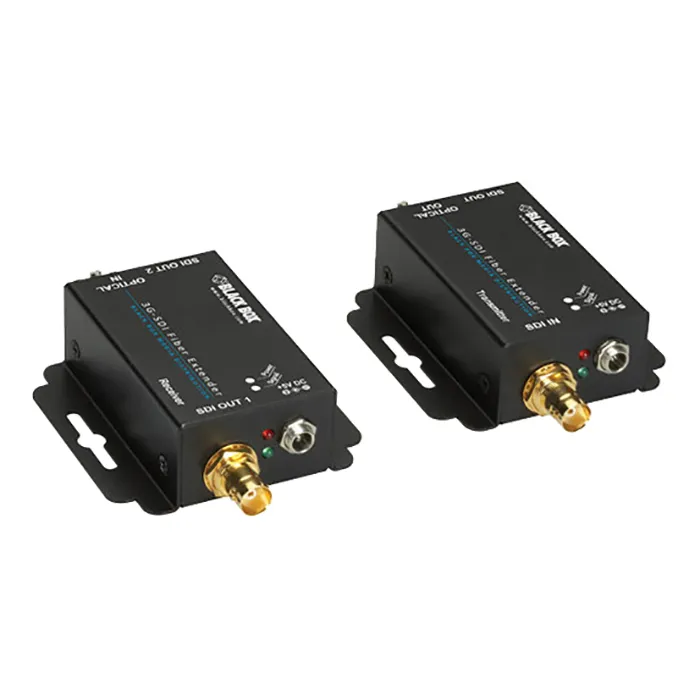

Black Box VX-SDI-FO-10KM | 3G-SDI Fiber Extender

Part No
VX-SDI-FO-10KM
Manufacturer
Category
Availability
Call For Price
Condition
Refurbished

Payment:

Payment methods
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
  • Black Box VX-SDI-FO-10KM | 3G-SDI Fiber Extender
Technical Documents:
General Information:
Model VX-SDI-FO-10KM
Product Type Fiber Extender Kit
Package Quantity 1
Package Type Retail
Media & Performance:
Maximum Distance Supported 10 km
Technical Information:
Impedance 75 Ω
Power Description:
Power Source AC Adapter
Power Input AC-Input
Physical Characteristics:
Height 1.2 Inches
Width 1.6 Inches
Depth 4.6 Inches
Weight 0.3 lbs
Miscellaneous:
Additional Features
  • Auto Reclocker Mode — Automatic detection: 270 Mbps/1.483 Gbps/ 1.485 Gbps/2.97 Gbps/2.967 Gbps; Automatic bypass: 177 Mbps/360 Mbps/540 Mbps
  • Cable Equalization — On coax connections: SD-SDI: 300 m (1000 ft.); HD-SDI: 150 m (500 ft.); 3G-SDI: 90 m (295 ft.)
  • Data Rates — 270 Mbps, 1483 Mbps, 1485 Mbps, 2967 Mbps, 2970 Mbps
  • Distance (Maximum) — On single-mode fiber: 10 km (6.25 mi.)
  • Fiber Characteristics — SMPTE 297-2006 compliant; Operating wavelength: 1310 nm; Optical fiber: 8–10/125-micron single-mode; Loss budget: 0–15 dB
  • Protocols — SMPTE 259M (270 Mbps), SMPTE 259M (360 Mbps), SMPTE 292M/HDTV (1.485 Gbps and 1.485/1.001 Gbps), SMPTE 424M/HDTV (2.97 Gbps and 2.97/1.001 Gbps), DVB ASI (270 Mbps)
  • SDI Standards — SD/HD/3G-SDI
  • Video Bandwidth — 2.97 Gbps, 2.97/1.001 Gbps
  • Video Resolutions Supported — HD: 720p at 50/59.94/60 Hz, 1035i at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 24/30/59.94/60 Hz; SD: NTSC at 59.94 Hz, PAL at 50 Hz
  • Connectors — Transmitter: SDI input: (1) BNC M (75-ohm); SDI loopout: (1) BNC M (75-ohm); Fiber interconnect: (1) LC simplex on SFP; Receiver: SDI output: (1) BNC M (75-ohm); SDI loopout: (1) BNC M (75-ohm); Fiber interconnect: (1) LC simplex on SFP
  • Indicators — Transmitter: (2) LEDs: (1) Power, (1) Signal; Receiver: (2) LEDs: (1) Power, (1) Signal
Compliance Standards:
Green Compliance
  • FCC
  • CE
