Image may differ from original

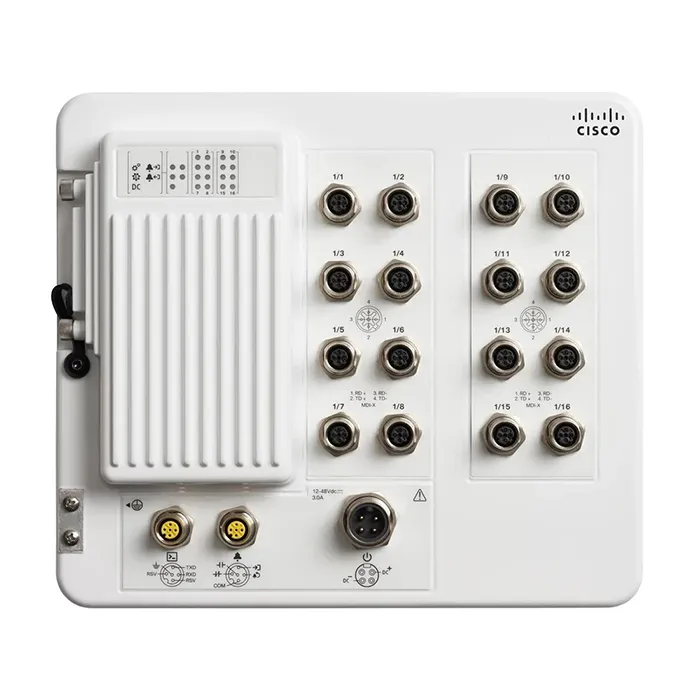

Cisco IE-3500H-12P2MU2XA | IE3500H Heavy Duty 2 x 10GbE SFP+ and 2 x Multi-Gigabit UPoE X-Code with 12 x 10/100/1000Base-T X-Code M12 Interfaces 240W Power Budget IP67 Switch Network Advantage
Description:
- Cisco IE-3500H-12P2MU2XA | IE3500H Heavy Duty 2 x 10GbE SFP+ and 2 x Multi-Gigabit UPoE X-Code with 12 x 10/100/1000Base-T X-Code M12 Interfaces 240W Power Budget IP67 Switch Network Advantage
Technical Documents:
General Information:
| Product Line | IE3500H Heavy Duty |
|---|---|
| Model | IE-3500H-12P2MU2X |
| Product Type | Layer 3 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 16 |
| Number of Expansion Slots | 2 |
| Expansion Slots Details | SFP+ |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 3 |
| Console Management Port | Yes |
| Flash Storage Memory | 16 GB |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | DC-Input |
Physical Characteristics:
| Form Factor | Wall-mountable |
|---|---|
| Height | 10.46 Inches |
| Width | 10.90 Inches |
| Depth | 3.36 Inches |
| Weight | 11.40 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
Note: 1 The SD card is optional and is not shipped by default with the switch. 2 Jumbo Frames are limited to 2000 bytes when using ERSPAN/DLR/PRP/HSR/SGT. |
|---|
