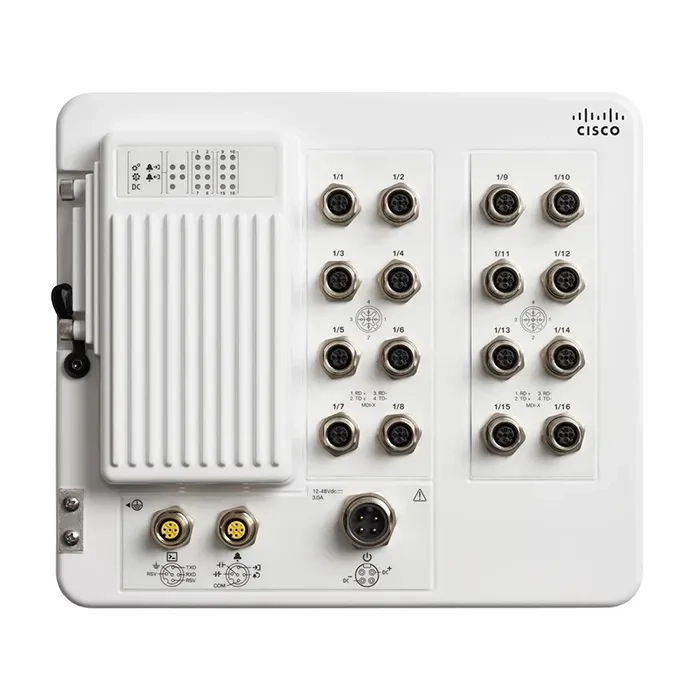

Cisco IE-3505H-16T-E | IE3500H Heavy Duty 16 x 10/100/1000Base-T X-Code M12 Interfaces Advance Features IP67 Switch Network Essentials

Part No IE-3505H-16T-E
Manufacturer Cisco
Condition Refurbished
Availability Call For Price
Call For Price

Speak with our team for current pricing and availability.

Call Now +1 (888) 203 - 4073
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • Cisco IE-3505H-16T-E | IE3500H Heavy Duty 16 x 10/100/1000Base-T X-Code M12 Interfaces Advance Features IP67 Switch Network Essentials
General Information:
Product Line IE3500H Heavy Duty
Model IE-3505H-16T
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 16 x Gigabit Ethernet M12
Total Number of Network Ports 16
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Media Standard Twisted Pair
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 16 GB
Power Description:
Power Source Power Supply
Power Input DC-Input
Physical Characteristics:
Form Factor Wall-mountable
Height 9.58 Inches
Width 10.90 Inches
Depth 3.16 Inches
Weight 11.25 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
  • REACH
Miscellaneous:
Additional Features
  • Forwarding rate: Line rate for all ports and all packet sizes
  • Number of queues: 8
  • Unicast MAC addresses: 24000
  • Internet Group Management Protocol (IGMP multicast groups): 1024
  • No. of Active VLANs: 1024
  • No. of VLAN IDs: 4096
  • IPv4 Indirect routes: 7000
  • IPv6 Indirect routes: 1522
  • Spanning Tree Protocol (STP) instances: 128
  • Access Control Entries (PACL/VACL/RACL): 1536
  • DRAM: 8 GB
  • Flash (User Accessible): 5.1 GB
  • SD card capacity1: 16 GB
  • Jumbo Frames2: 9198 bytes

Note:

1 The SD card is optional and is not shipped by default with the switch.

2 Jumbo Frames are limited to 2000 bytes when using ERSPAN/DLR/PRP/HSR/SGT.
