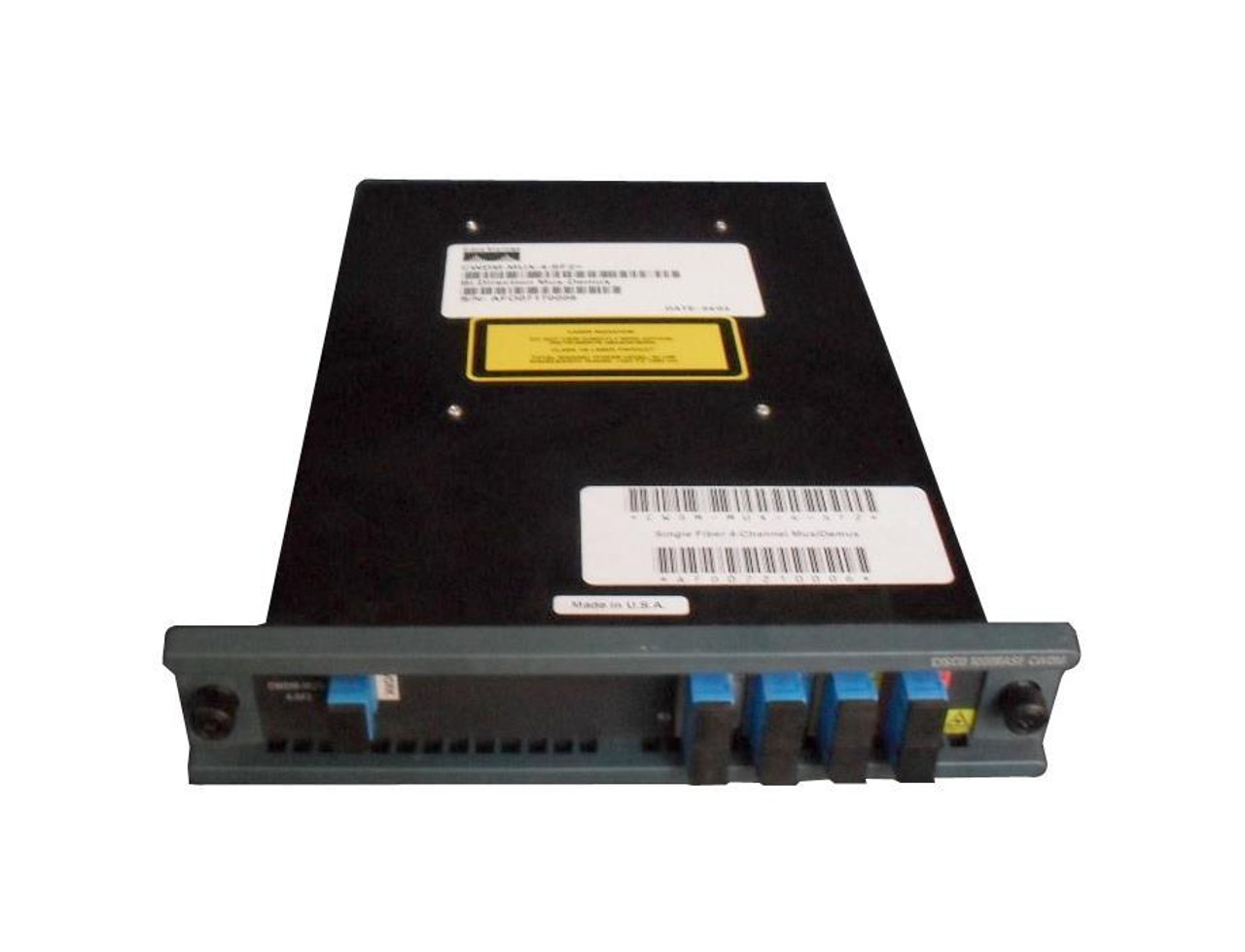

Cisco CWDM-MUX-4-SF2= | Cwdm-Mux-4-Sf2 4-Channel Multiplexer Module 4 Data Channels

1. Data Transfer Rate: Up to 10 Gbps per channel
2. Channel Spacing: 20 nm
3. Operating Wavelength Range: 1470 nm to 1610 nm
4. Insertion Loss: < 5.5 dB (including connectors)
5. Polarization Dependent Loss: < 0.5 dB
6. Return Loss: > 45 dB
7. Operating Temperature Range: -5°C to 70°C
8. Storage Temperature Range: -40°C to 85°C
9. Power Consumption: < 4 W
10. Fiber Type: Single-mode
11. Connector Type: LC/UPC
12. Dimensions (H x W x D): 1.2 x 7.9 x 9.5 inches

Helpful Notes:
1. This module can be used with Cisco ONS 15454 Multiservice Transport Platform.
2. It provides a cost-effective solution for increasing bandwidth capacity in fiber optic networks.
3. The module can be installed easily and does not require any additional software or configuration.
