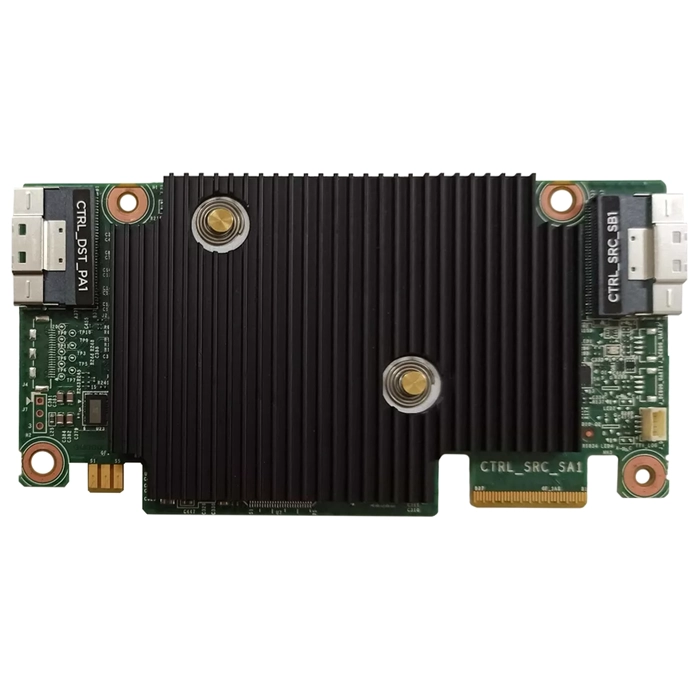

DELL FW25F | FW25F Perc H345 12gb/s Pcie 30 2x8 Internal Sas Connectors Front Controller System Pull

1. Interface: PCIe 3.0 x8
2. Data Transfer Rate: 12 Gb/s
3. Supported Devices: SAS/SATA
4. RAID Levels: 0, 1, 5, 6, 10, 50, 60
5. Cache Memory Size: 8GB DDR3
6. Form Factor: Low Profile
7. Internal Connectors: 2x Mini-SAS HD SFF8643
8. Compatible Dell Servers: PowerEdge R640, R740, R740XD, R940, R440, R540, R7415, R7425, R6415, T440, T640
9. Operating Temperature: 0°C to 60°C
10. Operating System Support: Microsoft Windows, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
11. Power Consumption: 11.5W
12. Dimensions (H x L): 6.9 cm x 16.8 cm

Notes:
1. The H345 controller offers high-performance and reliability with support for the latest SAS and SATA drives.
2. The 8GB DDR3 cache memory ensures faster data access and improved system performance.
3. The low profile form factor makes it compatible with a wide range of Dell servers while also saving space.
