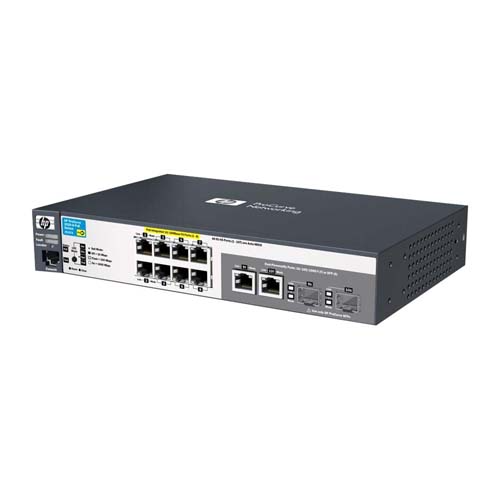

HP J9137AR#ABA | ProCurve 2520 Series 2520-8-PoE 8 x 10/100Base-TX RJ-45 PoE and 2 x 10/100/1000Base-T RJ45/SFP (mini-GBIC) Ports Layer 2 Managed Fast Ethernet Network Switch

Part No J9137AR#ABA
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$397.49
$373.64
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9137AR#ABA | ProCurve 2520 Series 2520-8-PoE 8 x 10/100Base-TX RJ-45 PoE and 2 x 10/100/1000Base-T RJ45/SFP (mini-GBIC) Ports Layer 2 Managed Fast Ethernet Network Switch
  • HP ProCurve 2520-8-PoE (J9137AR#ABA) shows up a lot in shortlists for small business networks that want PoE without enterprise-scale port counts, and for good reason. It suits small offices, retail locations and branch sites that need to power a modest number of APs, cameras or VoIP phones, plus home labs where PoE simplifies cabling without justifying an enterprise-class switch. Wiring is handled by 12 total network ports, laid out as 8xFast EthernetPoE,RJ-45 and 2xGigabit EthernetRJ-45 and 2xGigabit EthernetSFP (mini-GBIC), topping out at Gigabit (1GbE) per port. With PoE on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. As a Layer 2 switch, it focuses on fast MAC-address forwarding and VLAN segmentation rather than routing. It rounds this out with SFP (mini-GBIC) expansion for uplinks. Onboard flash storage of 32 (MB) keeps firmware and config backups local to the switch. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect stocks the HP ProCurve 2520-8-PoE as genuine, warranty-covered hardware, with fast delivery across the US.
General Information:
Product Line ProCurve 2520
Model 2520-8-PoE
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 8 x Fast Ethernet PoE, RJ-45
  • 2 x Gigabit Ethernet RJ-45
  • 2 x Gigabit Ethernet SFP (mini-GBIC)
Total Number of Network Ports 12
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
Console Management Port Yes
Flash Storage Memory 32 MB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 10 Inches
Depth 6.28 Inches
Weight 3.62 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 1.9 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 1.5 µs (LIFO 64-byte packets)
  • Throughput: 4.1 million pps
  • Switching capacity: 5.6 Gbps
  • MAC address table size: 8000 entries
