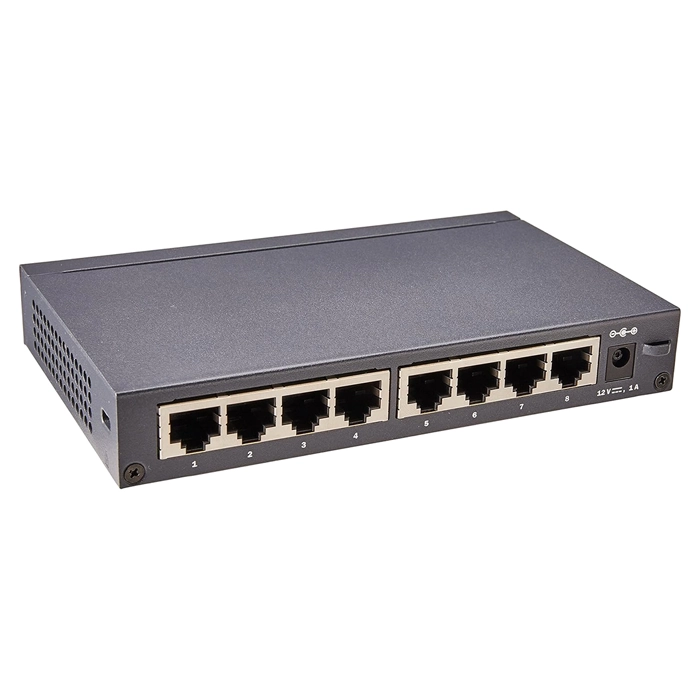

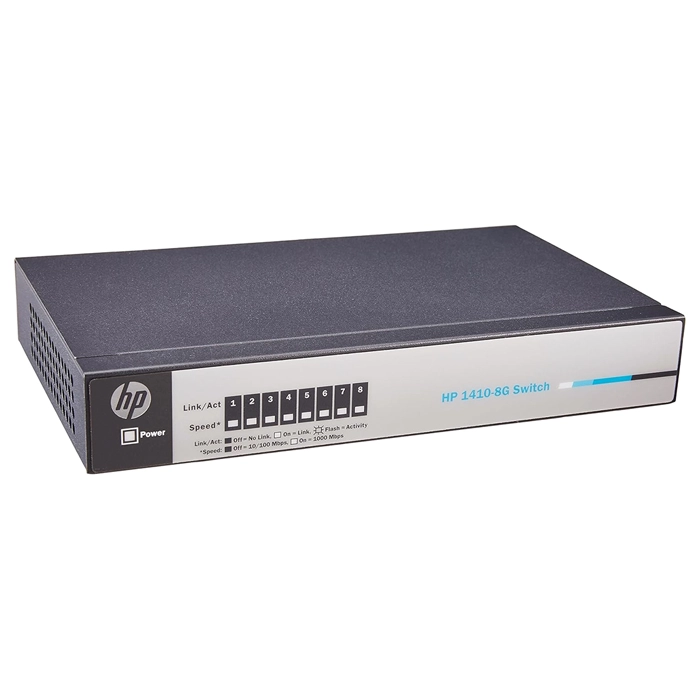

HP J9559AR#ACF | OfficeConnect 1410 Series 1410-8G 8 x 10/100/1000Base-T RJ-45 Ports Layer 2 Unmanaged Gigabit Ethernet Network Switch

Part No J9559AR#ACF
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$368.66
$346.54
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9559AR#ACF | OfficeConnect 1410 Series 1410-8G 8 x 10/100/1000Base-T RJ-45 Ports Layer 2 Unmanaged Gigabit Ethernet Network Switch
  • HP OfficeConnect 1410-8G (J9559AR#ACF) is a solid pick for small retail counters or back offices needing a couple of extra ports that don't want to overthink the network layer. Home offices, small businesses and workgroups that just want more reliable ports - without VLANs or a CLI to learn - are the target here. Plug it in and go. On the port side, you get 8 total network ports, laid out as 8xGigabit EthernetRJ-45, topping out at Gigabit (1GbE) per port. It rounds this out with a fixed-port design that keeps configuration simple. A built-in 4 (KB) of flash storage holds firmware images and config backups on the switch itself. As a Layer 2 switch, it focuses on fast MAC-address forwarding and VLAN segmentation rather than routing. For installation, it's desktop-friendly, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, twisted pair media keeps it compatible with existing cabling. GotoDirect sources this HP OfficeConnect switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1410
Model 1410-8G
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots 8 x Gigabit Ethernet RJ-45
Total Number of Network Ports 8
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Media Standard Twisted Pair
Manageable No
Layer Supported 2
Flash Storage Memory 4 KB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Wall-mountable
Height 0.96 Inches
Width 6.14 Inches
Depth 3.8 Inches
Weight 0.74 lbs
Compliance Standards:
Green Compliance FCC
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 3.6 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 1.2 µs (LIFO 64-byte packets)
  • Throughput: up to 11.9 million pps (64-byte packets)
  • Switching capacity: 16 Gb/s
  • MAC address table size: 4096 entries
