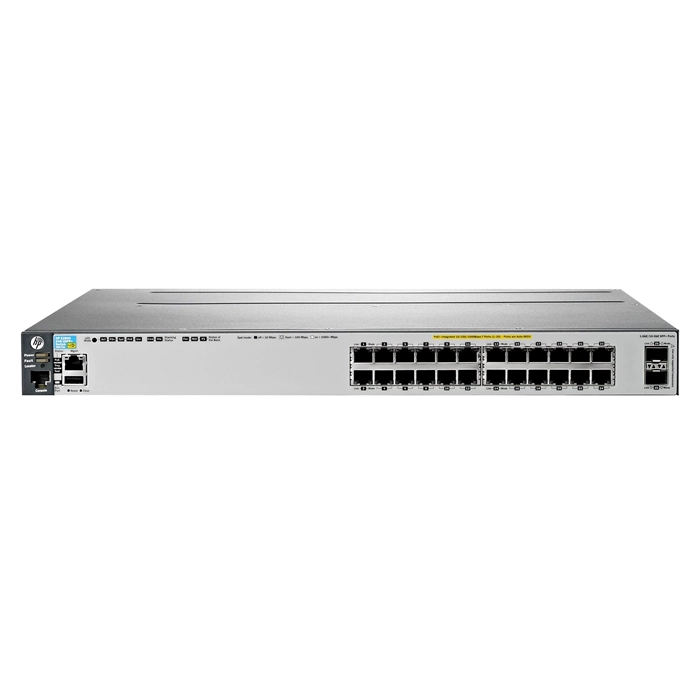

HP J9573AR#ACF | Aruba 3800 Series 3800-24G-PoE+-2SFP+ 24 x 10/100/1000Base-T RJ-45 PoE+ and 2 x 10GbE SFP+ Ports and 1 x Stacking Module Slot Layer 3 Managed Gigabit Ethernet Network Switch

Part No J9573AR#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$247.20
$232.37
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9573AR#ACF | Aruba 3800 Series 3800-24G-PoE+-2SFP+ 24 x 10/100/1000Base-T RJ-45 PoE+ and 2 x 10GbE SFP+ Ports and 1 x Stacking Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
  • HP Aruba 3800-24G-PoE+-2SFP+ (J9573AR#ACF) is a solid pick for large offices consolidating dozens of PoE endpoints onto fewer switches that don't want to overthink the network layer. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. On the port side, you get 27 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 2x10 Gigabit EthernetSFP+,Uplink and 1xStacking Module, topping out at 10GbE per port. Built-in PoE+ power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. It also adds SFP+,Stacking Module expansion for uplinks. With 4 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP+,Stacking Module covers both copper and fiber runs. When you order the HP Aruba 3800-24G-PoE+-2SFP+ through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
General Information:
Product Line 3800
Model 3800-24G-PoE+-2SFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet PoE+, RJ-45
  • 2 x 10 Gigabit Ethernet SFP+, Uplink
  • 1 x Stacking Module
Total Number of Network Ports 27
Number of Expansion Slots 3
Expansion Slots Details
  • SFP+
  • Stacking Module
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 4 GB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.7 Inches
Width 17.43 Inches
Depth 18.4 Inches
Weight 15.9 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 1000 Mb Latency: < 2.8 µs (LIFO 64-byte packets)
  • 10 Gb/s Latency: < 1.9 µs (LIFO 64-byte packets)
  • Throughput: up to 65.4 million pps (64-byte packets)
  • Switching capacity: 88 Gb/s
  • Routing table size: 10000 entries (IPv4)
  • MAC address table size: 65500 entries
