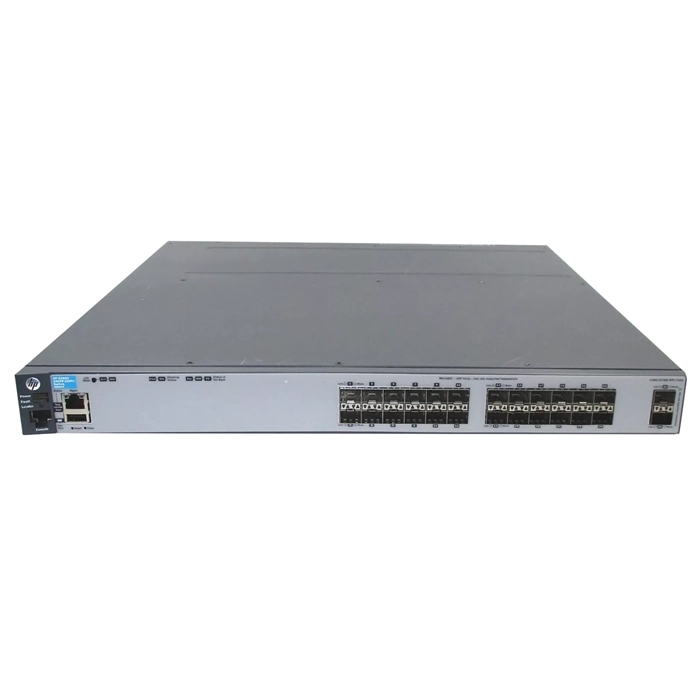

HP J9584A#B8X | Aruba 3800 Series 3800-24SFP-2SFP+ 24 x 1GbE SFP and 2 x 10GbE SFP+ Ports and 1 x Stacking Module Slot Layer 3 Managed Gigabit Ethernet Network Switch

Part No J9584A#B8X
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,082.18
$1,017.25
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9584A#B8X | Aruba 3800 Series 3800-24SFP-2SFP+ 24 x 1GbE SFP and 2 x 10GbE SFP+ Ports and 1 x Stacking Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
  • HP Aruba 3800-24SFP-2SFP+ (J9584A#B8X) is a solid pick for network cores and aggregation layers feeding busy server racks that don't want to overthink the network layer. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 27 total network ports, laid out as 24xGigabit EthernetSFP (mini-GBIC) and 2x10 Gigabit EthernetSFP+,Uplink and 1xStacking Module, topping out at 10GbE per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. Beyond the base ports, there's SFP+,Stacking Module expansion for uplinks. Onboard flash storage of 4 (GB) keeps firmware and config backups local to the switch. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access makes setup and firmware recovery easier; optical fiber media over SFP+,Stacking Module covers both copper and fiber runs. Buy the HP Aruba 3800-24SFP-2SFP+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
General Information:
Product Line 3800
Model 3800-24SFP-2SFP+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet SFP (mini-GBIC)
  • 2 x 10 Gigabit Ethernet SFP+, Uplink
  • 1 x Stacking Module
Total Number of Network Ports 27
Number of Expansion Slots 27
Expansion Slots Details
  • SFP+
  • Stacking Module
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 1000Base-X
  • 10GBase-X
Media Standard Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 4 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.7 Inches
Width 17.43 Inches
Depth 18.4 Inches
Weight 16.01 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 1000 Mb Latency: < 2.8 µs (LIFO 64-byte packets)
  • 10 Gb/s Latency: < 1.9 µs (LIFO 64-byte packets)
  • Throughput: up to 65.4 million pps (64-byte packets)
  • Switching capacity: 88 Gb/s
  • Routing table size: 10000 entries (IPv4)
  • MAC address table size: 65500 entries
