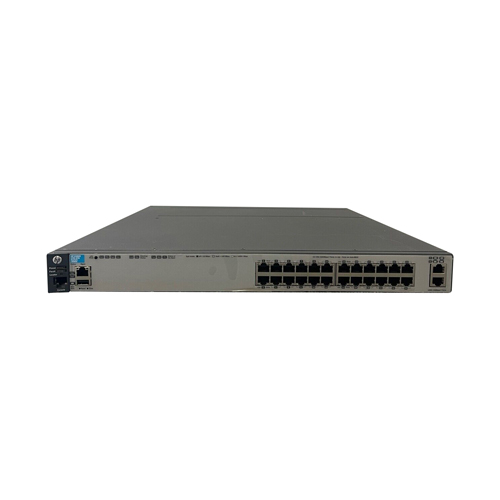

HP J9585AR#ABA | Aruba 3800 Series 3800-24G-2XG 24 x 10/100/1000Base-T RJ-45 and 2 x 10GBase-T RJ-45 Ports and 1 x Stacking Module Slot Layer 3 Managed Gigabit Ethernet Network Switch

Part No J9585AR#ABA
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$409.57
$385.00
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9585AR#ABA | Aruba 3800 Series 3800-24G-2XG 24 x 10/100/1000Base-T RJ-45 and 2 x 10GBase-T RJ-45 Ports and 1 x Stacking Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
  • HP Aruba 3800-24G-2XG (J9585AR#ABA) is built to handle data centers, virtualization hosts and server rooms that need high east-west throughput without drama. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Port-wise, it offers 27 total network ports, laid out as 24xGigabit EthernetRJ-45 and 2x10 Gigabit EthernetRJ-45,Uplink and 1xStacking Module, topping out at 10GbE per port. It also adds Stacking Module expansion for uplinks. With 4 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over Stacking Module covers both copper and fiber runs. GotoDirect sources this HP Aruba switch as a genuine, warranty-backed unit, with fast shipping across the US.
General Information:
Product Line 3800
Model 3800-24G-2XG
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet RJ-45, Uplink
  • 1 x Stacking Module
Total Number of Network Ports 27
Number of Expansion Slots 2
Expansion Slots Details Stacking Module
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 4 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.7 Inches
Width 17.43 Inches
Depth 18.4 Inches
Weight 15.81 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 1000 Mb Latency: < 2.8 µs (LIFO 64-byte packets)
  • 10 Gb/s Latency: < 1.9 µs (LIFO 64-byte packets)
  • Throughput: up to 65.4 million pps (64-byte packets)
  • Switching capacity: 88 Gb/s
  • Routing table size: 10000 entries (IPv4)
  • MAC address table size: 65500 entries
