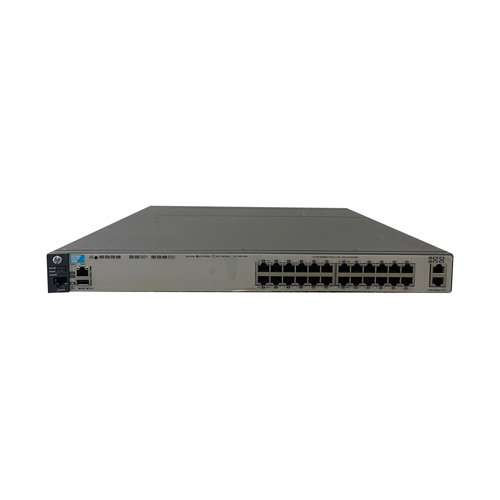

HP J9585AR#ACC | Aruba 3800 Series 3800-24G-2XG 24 x 10/100/1000Base-T RJ-45 and 2 x 10GBase-T RJ-45 Ports and 1 x Stacking Module Slot Layer 3 Managed Gigabit Ethernet Network Switch

Part No J9585AR#ACC
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$409.57
$385.00
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9585AR#ACC | Aruba 3800 Series 3800-24G-2XG 24 x 10/100/1000Base-T RJ-45 and 2 x 10GBase-T RJ-45 Ports and 1 x Stacking Module Slot Layer 3 Managed Gigabit Ethernet Network Switch
  • HP Aruba 3800-24G-2XG (J9585AR#ACC) shows up a lot in shortlists for media and rendering studios moving large files between workstations and storage, and for good reason. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 27 total network ports, laid out as 24xGigabit EthernetRJ-45 and 2x10 Gigabit EthernetRJ-45,Uplink and 1xStacking Module, topping out at 10GbE per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with Stacking Module expansion for uplinks. With 4 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over Stacking Module covers both copper and fiber runs. GotoDirect ships this HP Aruba switch as genuine stock with full warranty backing and fast delivery nationwide.
General Information:
Product Line 3800
Model 3800-24G-2XG
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 2 x 10 Gigabit Ethernet RJ-45, Uplink
  • 1 x Stacking Module
Total Number of Network Ports 27
Number of Expansion Slots 2
Expansion Slots Details Stacking Module
Modular Expansion Yes
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-T
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 4 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.7 Inches
Width 17.43 Inches
Depth 18.4 Inches
Weight 15.81 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 1000 Mb Latency: < 2.8 µs (LIFO 64-byte packets)
  • 10 Gb/s Latency: < 1.9 µs (LIFO 64-byte packets)
  • Throughput: up to 65.4 million pps (64-byte packets)
  • Switching capacity: 88 Gb/s
  • Routing table size: 10000 entries (IPv4)
  • MAC address table size: 65500 entries
