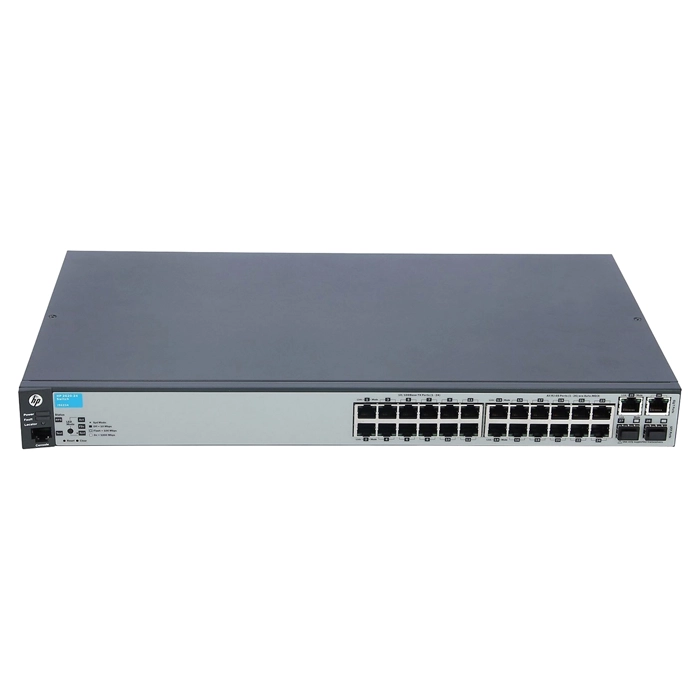

HP J9623AR#ABA | Aruba 2620 Series 2620-24 24 x 10/100Base-TX RJ-45 and 2 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Network Fast Ethernet Network Switch

Part No J9623AR#ABA
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$211.39
$198.71
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9623AR#ABA | Aruba 2620 Series 2620-24 24 x 10/100Base-TX RJ-45 and 2 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Network Fast Ethernet Network Switch
  • HP Aruba 2620-24 (J9623AR#ABA) shows up a lot in shortlists for organizations running virtualization clusters, NAS arrays or render farms that need low-latency, high-bandwidth links, and for good reason. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. On the port side, you get 28 total network ports, laid out as 24xFast EthernetRJ-45 and 2xGigabit EthernetRJ-45,Uplink and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. It rounds this out with SFP (mini-GBIC) expansion for uplinks. A built-in 512 (MB) of flash storage holds firmware images and config backups on the switch itself. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect ships this HP Aruba switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
Product Line 2620
Model 2620-24
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Fast Ethernet RJ-45
  • 2 x Gigabit Ethernet RJ-45, Uplink
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 28
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.44 Inches
Depth 10 Inches
Weight 5.7 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 8.3 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 2.9 µs (LIFO 64-byte packets)
  • Throughput: up to 9.5 million pps
  • Routing/Switching capacity: 12.8 Gbps
  • MAC address table size: 16000 entries
