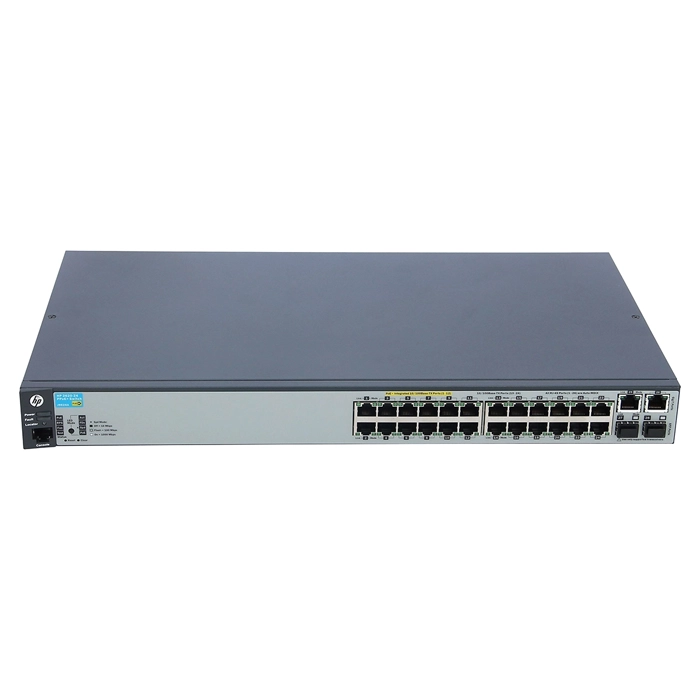

HP J9624A#AKL | Aruba 2620 Series 2620-24-PPoE+ 12 x 10/100Base-TX RJ-45 PoE+ and 12 x 10/100Base-TX RJ-45 and 2 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Fast Ethernet Network Switch

Part No J9624A#AKL
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$248.60
$233.68
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9624A#AKL | Aruba 2620 Series 2620-24-PPoE+ 12 x 10/100Base-TX RJ-45 PoE+ and 12 x 10/100Base-TX RJ-45 and 2 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Fast Ethernet Network Switch
  • HP Aruba 2620-24-PPoE+ (J9624A#AKL) is the switch IT teams supporting IT teams standardizing wiring closets across a multi-building campus often turn to when they need something that just works. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Wiring is handled by 28 total network ports, laid out as 12xFast EthernetPoE+,RJ-45 and 12xFast EthernetRJ-45 and 2xGigabit EthernetRJ-45,Uplink and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. On top of that, it has SFP (mini-GBIC) expansion for uplinks. A built-in 512 (MB) of flash storage holds firmware images and config backups on the switch itself. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. GotoDirect sources this HP Aruba switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
Product Line 2620
Model 2620-24-PPoE+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 12 x Fast Ethernet PoE+, RJ-45
  • 12 x Fast Ethernet RJ-45
  • 2 x Gigabit Ethernet RJ-45, Uplink
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 28
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.44 Inches
Depth 10 Inches
Weight 7.04 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 8.3 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 2.9 µs (LIFO 64-byte packets)
  • Throughput: up to 9.5 million pps
  • Routing/Switching capacity: 12.8 Gbps
  • MAC address table size: 16000 entries
