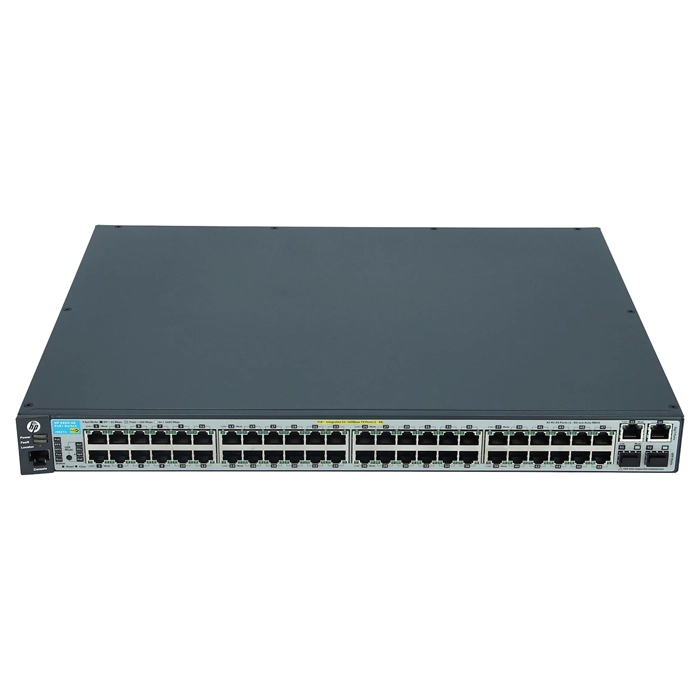

HP J9627A#B8X | Aruba 2620 Series 2620-48-PoE+ 48 x 10/100Base-TX RJ-45 PoE+ and 2 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Fast Ethernet Network Switch

Part No J9627A#B8X
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,544.71
$1,452.03
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9627A#B8X | Aruba 2620 Series 2620-48-PoE+ 48 x 10/100Base-TX RJ-45 PoE+ and 2 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Fast Ethernet Network Switch
  • HP Aruba 2620-48-PoE+ (J9627A#B8X) is worth a close look if you're setting up or upgrading a network for IT teams standardizing wiring closets across a multi-building campus. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. Port-wise, it offers 52 total network ports, laid out as 48xFast EthernetPoE+,RJ-45 and 2xGigabit EthernetRJ-45,Uplink and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On top of that, it has SFP (mini-GBIC) expansion for uplinks. Onboard flash storage of 512 (MB) keeps firmware and config backups local to the switch. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP Aruba 2620-48-PoE+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line 2620
Model 2620-48-PoE+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Fast Ethernet PoE+, RJ-45
  • 2 x Gigabit Ethernet RJ-45, Uplink
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 52
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.44 Inches
Depth 14.5 Inches
Weight 11.53 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 8.3 µs (LIFO)
  • 1000 Mb Latency: < 2.9 µs (LIFO)
  • Throughput: up to 13.0 million pps
  • Routing/Switching capacity: 17.6 Gbps
  • MAC address table size: 16000 entries
