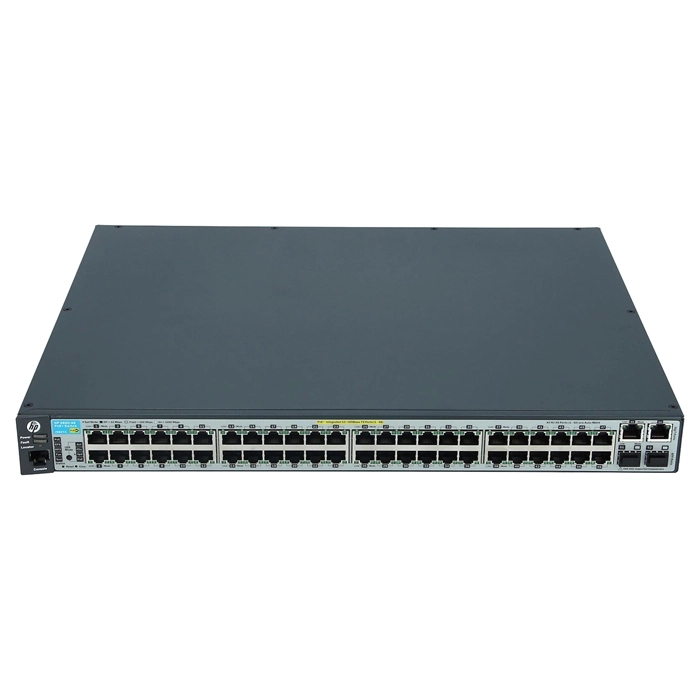

HP J9627AR#AKL | Aruba 2620 Series 2620-48-PoE+ 48 x 10/100Base-TX RJ-45 PoE+ and 2 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Fast Ethernet Network Switch

Part No J9627AR#AKL
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,544.71
$1,452.03
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9627AR#AKL | Aruba 2620 Series 2620-48-PoE+ 48 x 10/100Base-TX RJ-45 PoE+ and 2 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 3 Managed Fast Ethernet Network Switch
  • HP Aruba 2620-48-PoE+ (J9627AR#AKL) is the switch IT teams supporting large offices consolidating dozens of PoE endpoints onto fewer switches often turn to when they need something that just works. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. On the port side, you get 52 total network ports, laid out as 48xFast EthernetPoE+,RJ-45 and 2xGigabit EthernetRJ-45,Uplink and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. It also adds SFP (mini-GBIC) expansion for uplinks. Onboard flash storage of 512 (MB) keeps firmware and config backups local to the switch. Built-in PoE+ power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. When you order the HP Aruba 2620-48-PoE+ through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
Product Line 2620
Model 2620-48-PoE+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Fast Ethernet PoE+, RJ-45
  • 2 x Gigabit Ethernet RJ-45, Uplink
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 52
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
Console Management Port Yes
Flash Storage Memory 512 MB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.73 Inches
Width 17.44 Inches
Depth 14.5 Inches
Weight 11.53 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 8.3 µs (LIFO)
  • 1000 Mb Latency: < 2.9 µs (LIFO)
  • Throughput: up to 13.0 million pps
  • Routing/Switching capacity: 17.6 Gbps
  • MAC address table size: 16000 entries
