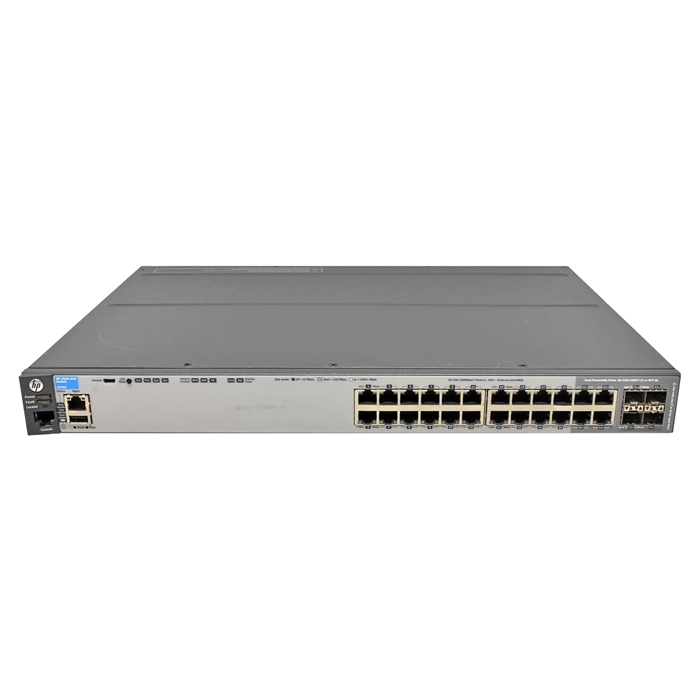

HP J9726A#AC3 | Aruba 2920 Series 2920-24G 20 x RJ-45 10/100/1000Base-T and 4 x Dual Personality SFP Ports + 2 x Expansion Module Layer 3 Managed Stackable Gigabit Ethernet Network Switch

Part No J9726A#AC3
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$450.68
$423.64
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9726A#AC3 | Aruba 2920 Series 2920-24G 20 x RJ-45 10/100/1000Base-T and 4 x Dual Personality SFP Ports + 2 x Expansion Module Layer 3 Managed Stackable Gigabit Ethernet Network Switch
  • HP Aruba 2920-24G (J9726A#AC3) is the switch IT teams supporting network cores and aggregation layers feeding busy server racks often turn to when they need something that just works. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 31 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink and 2xExpansion Module and 1xStacking Module, topping out at Gigabit (1GbE) per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. It rounds this out with SFP (mini-GBIC),Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. A built-in 1 (GB) of flash storage holds firmware images and config backups on the switch itself. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. When you order the HP Aruba 2920-24G through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
Product Line 2920
Model 2920-24G
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
  • 2 x Expansion Module
  • 1 x Stacking Module
Total Number of Network Ports 31
Number of Expansion Slots 7
Expansion Slots Details
  • SFP (mini-GBIC)
  • Stacking Module
  • Expansion Module
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Stacking Port Yes
Flash Storage Memory 1 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 17.42 Inches
Depth 13.23 Inches
Weight 11.57 lbs
Compliance Standards:
Green Compliance
  • FCC
  • CE
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 9.0 µs (FIFO 64-byte packets)
  • 1000 Mb Latency: < 3.3 µs (FIFO 64-byte packets)
  • 10 Gbps Latency: < 3.3 µs (FIFO 64-byte packets)
  • Throughput: up to 95.2 Mpps
  • Switching capacity: 128 Gbps
  • Routing table size: 2048 entries (IPv4), 256 entries (IPv6)
  • MAC address table size: 16000 entries
