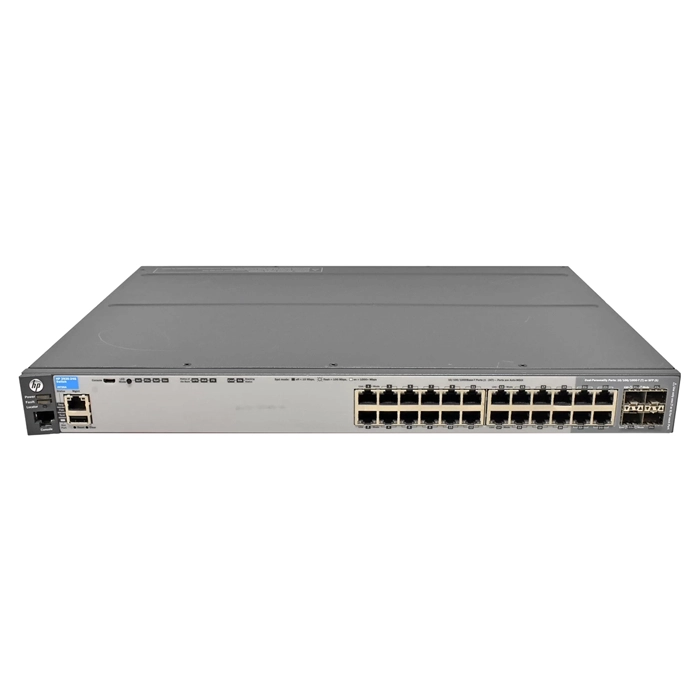

HP J9726A#AKJ | Aruba 2920 Series 2920-24G 20 x RJ-45 10/100/1000Base-T and 4 x Dual Personality SFP Ports + 2 x Expansion Module Layer 3 Managed Stackable Gigabit Ethernet Network Switch

Part No J9726A#AKJ
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$450.68
$423.64
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9726A#AKJ | Aruba 2920 Series 2920-24G 20 x RJ-45 10/100/1000Base-T and 4 x Dual Personality SFP Ports + 2 x Expansion Module Layer 3 Managed Stackable Gigabit Ethernet Network Switch
  • HP Aruba 2920-24G (J9726A#AKJ) is worth a close look if you're setting up or upgrading a network for data centers, virtualization hosts and server rooms that need high east-west throughput. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 31 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink and 2xExpansion Module and 1xStacking Module, topping out at Gigabit (1GbE) per port. Because it supports Layer 3 routing, inter-VLAN traffic and routing tables can live on the switch instead of a separate router. On top of that, it has SFP (mini-GBIC),Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. With 1 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC),Stacking Module,Expansion Module covers both copper and fiber runs. Buy the HP Aruba 2920-24G from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line 2920
Model 2920-24G
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
  • 2 x Expansion Module
  • 1 x Stacking Module
Total Number of Network Ports 31
Number of Expansion Slots 7
Expansion Slots Details
  • SFP (mini-GBIC)
  • Stacking Module
  • Expansion Module
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Stacking Port Yes
Flash Storage Memory 1 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 17.42 Inches
Depth 13.23 Inches
Weight 11.57 lbs
Compliance Standards:
Green Compliance
  • FCC
  • CE
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 9.0 µs (FIFO 64-byte packets)
  • 1000 Mb Latency: < 3.3 µs (FIFO 64-byte packets)
  • 10 Gbps Latency: < 3.3 µs (FIFO 64-byte packets)
  • Throughput: up to 95.2 Mpps
  • Switching capacity: 128 Gbps
  • Routing table size: 2048 entries (IPv4), 256 entries (IPv6)
  • MAC address table size: 16000 entries
