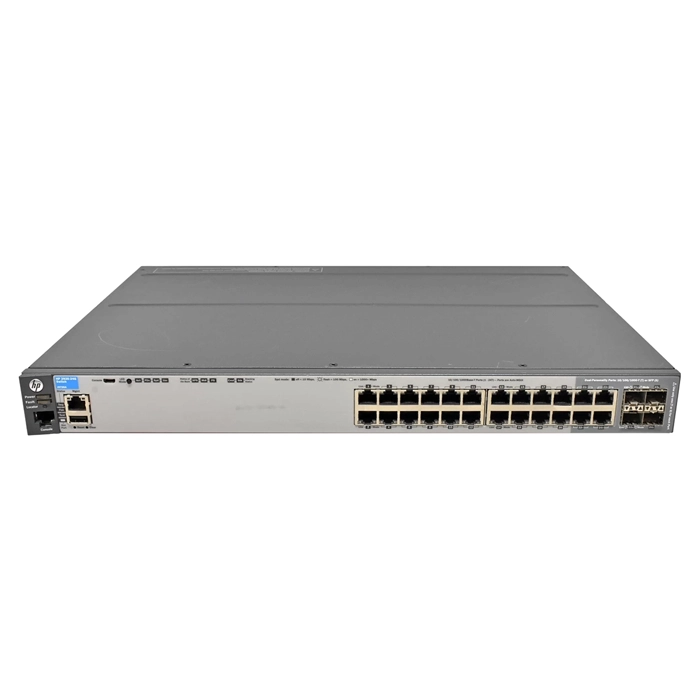

HP J9726AR#ACF | Aruba 2920 Series 2920-24G 20 x RJ-45 10/100/1000Base-T and 4 x Dual Personality SFP Ports + 2 x Expansion Module Layer 3 Managed Stackable Gigabit Ethernet Network Switch

Part No J9726AR#ACF
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$450.68
$423.64
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9726AR#ACF | Aruba 2920 Series 2920-24G 20 x RJ-45 10/100/1000Base-T and 4 x Dual Personality SFP Ports + 2 x Expansion Module Layer 3 Managed Stackable Gigabit Ethernet Network Switch
  • HP Aruba 2920-24G (J9726AR#ACF) is worth a close look if you're setting up or upgrading a network for data centers, virtualization hosts and server rooms that need high east-west throughput. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. It brings 31 total network ports, laid out as 24xGigabit EthernetRJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink and 2xExpansion Module and 1xStacking Module, topping out at Gigabit (1GbE) per port. Layer 3 routing handles inter-VLAN traffic and static or dynamic routes on the switch itself. It also adds SFP (mini-GBIC),Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. Onboard flash storage of 1 (GB) keeps firmware and config backups local to the switch. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC),Stacking Module,Expansion Module covers both copper and fiber runs. GotoDirect ships this HP Aruba switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
Product Line 2920
Model 2920-24G
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
  • 2 x Expansion Module
  • 1 x Stacking Module
Total Number of Network Ports 31
Number of Expansion Slots 7
Expansion Slots Details
  • SFP (mini-GBIC)
  • Stacking Module
  • Expansion Module
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Stacking Port Yes
Flash Storage Memory 1 GB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 17.42 Inches
Depth 13.23 Inches
Weight 11.57 lbs
Compliance Standards:
Green Compliance
  • FCC
  • CE
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 9.0 µs (FIFO 64-byte packets)
  • 1000 Mb Latency: < 3.3 µs (FIFO 64-byte packets)
  • 10 Gbps Latency: < 3.3 µs (FIFO 64-byte packets)
  • Throughput: up to 95.2 Mpps
  • Switching capacity: 128 Gbps
  • Routing table size: 2048 entries (IPv4), 256 entries (IPv6)
  • MAC address table size: 16000 entries
