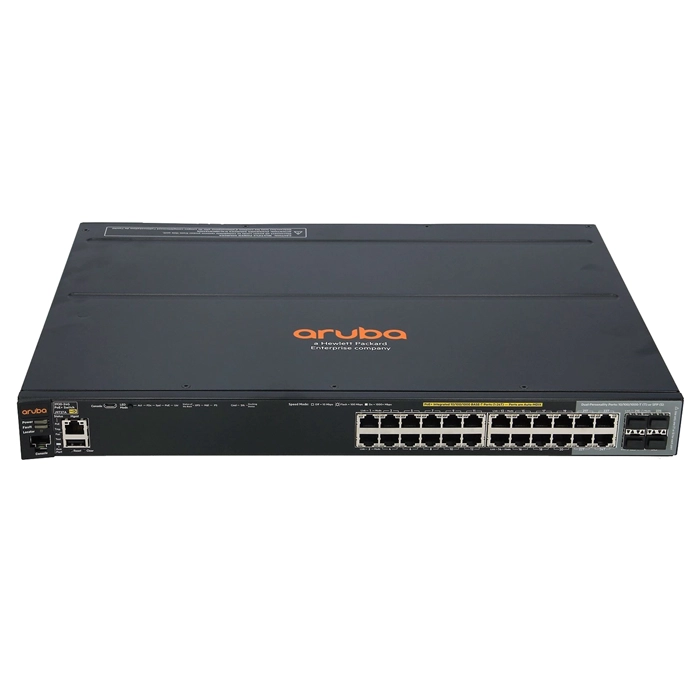

HP J9727AR#ACQ | Aruba 2920 Series 2920-24G-PoE+ 20 x RJ-45 PoE+ 10/100/1000Base-T and 4 x Dual Personality SFP Ports + 2 x Expansion Module Layer 3 Managed Stackable Gigabit Ethernet Network Switch

Part No J9727AR#ACQ
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$211.39
$198.71
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9727AR#ACQ | Aruba 2920 Series 2920-24G-PoE+ 20 x RJ-45 PoE+ 10/100/1000Base-T and 4 x Dual Personality SFP Ports + 2 x Expansion Module Layer 3 Managed Stackable Gigabit Ethernet Network Switch
  • HP Aruba 2920-24G PoE+ (J9727AR#ACQ) is the switch IT teams supporting schools and universities powering classroom APs and phones at scale often turn to when they need something that just works. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Wiring is handled by 31 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink and 2xExpansion Module and 1xStacking Module, topping out at Gigabit (1GbE) per port. It rounds this out with SFP (mini-GBIC),Stacking Module,Expansion Module expansion for uplinks and stacking so multiple units run as one logical switch. With 1 (GB) of onboard flash, firmware and configuration backups don't depend on a remote server. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 3 support means it routes between VLANs on its own rather than forwarding everything to an upstream router. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Buy the HP Aruba 2920-24G PoE+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line 2920
Model 2920-24G PoE+
Product Type Layer 3 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet PoE+, RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
  • 2 x Expansion Module
  • 1 x Stacking Module
Total Number of Network Ports 31
Number of Expansion Slots 7
Expansion Slots Details
  • SFP (mini-GBIC)
  • Stacking Module
  • Expansion Module
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 3
USB Port Yes
Console Management Port Yes
Stacking Port Yes
Flash Storage Memory 1 GB
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 17.42 Inches
Depth 13.23 Inches
Weight 12.04 lbs
Compliance Standards:
Green Compliance
  • FCC
  • CE
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 9.0 µs (FIFO 64-byte packets)
  • 1000 Mb Latency: < 3.3 µs (FIFO 64-byte packets)
  • 10 Gbps Latency: < 3.3 µs (FIFO 64-byte packets)
  • Throughput: up to 95.2 Mpps
  • Switching capacity: 128 Gbps
  • Routing table size: 2048 entries (IPv4), 256 entries (IPv6)
  • MAC address table size: 16000 entries
