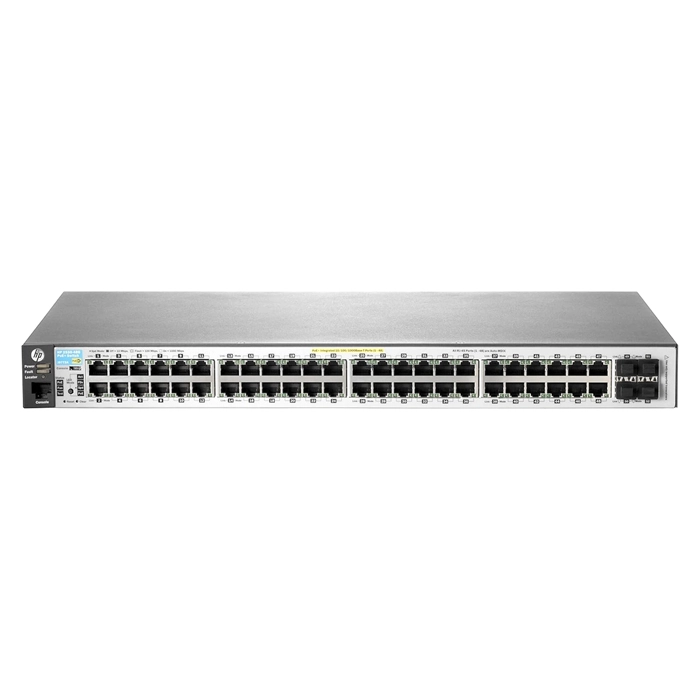

HP J9772AR#AKL | Aruba 2530 Series 2530-48G-PoE+ 48 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No J9772AR#AKL
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$2,871.48
$2,699.19
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9772AR#AKL | Aruba 2530 Series 2530-48G-PoE+ 48 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP Aruba 2530-48G-PoE+ (J9772AR#AKL) makes sense if you're shopping for enterprises rolling out PoE access points, IP cameras and phones across large floors. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. It brings 52 total network ports, laid out as 48xGigabit EthernetPoE+,RJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. On top of that, it has SFP (mini-GBIC) expansion for uplinks. Firmware and configuration live in onboard non-volatile memory, surviving reboots and power cycles. Built-in PoE+ power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP Aruba 2530-48G-PoE+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line 2530
Model 2530-48G-PoE+
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet PoE+, RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 52
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
USB Port Yes
Console Management Port Yes
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 17.44 Inches
Depth 13.00 Inches
Weight 10.4 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 2.3 µs (LIFO 64-byte packets)
  • Throughput up to: 77.3 Mpps (64-byte packets)
  • Switching capacity: 104 Gbps
  • MAC address table size: 16000 entries
