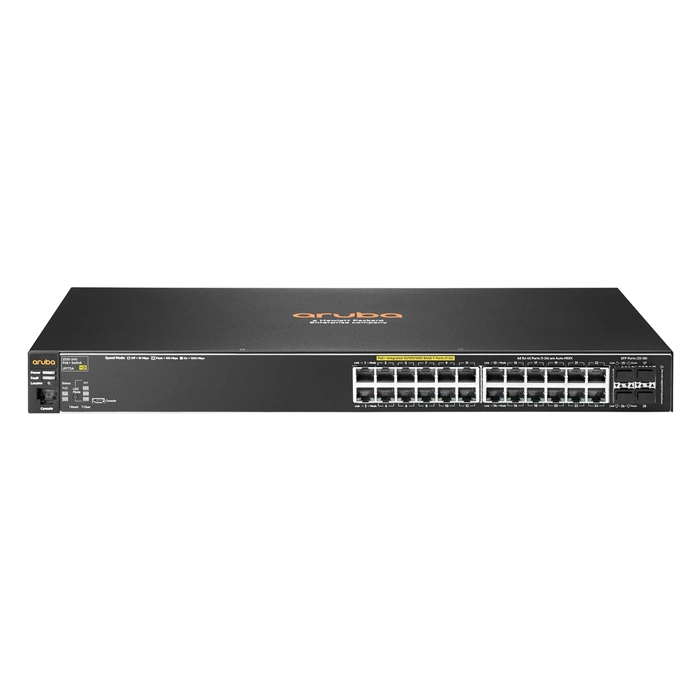

HP J9773A#ACF | Aruba 2530 Series 2530-24G-PoE+ 24 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No J9773A#ACF
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,088.34
$1,023.04
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9773A#ACF | Aruba 2530 Series 2530-24G-PoE+ 24 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP Aruba 2530-24G-PoE+ (J9773A#ACF) is a strong, no-nonsense fit for large offices consolidating dozens of PoE endpoints onto fewer switches. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. Wiring is handled by 28 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. On top of that, it has SFP (mini-GBIC) expansion for uplinks. Settings and firmware are stored in onboard non-volatile memory, so they survive reboots and power cycles. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP Aruba 2530-24G-PoE+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line 2530
Model 2530-24G-PoE+
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet PoE+, RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
USB Port Yes
Console Management Port Yes
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 17.44 Inches
Depth 13.00 Inches
Weight 8.7 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 2.3 µs (LIFO 64-byte packets)
  • Throughput: up to 41.6 Mpps (64-byte packets)
  • Switching capacity: 56 Gbps
  • MAC address table size: 16000 entries
