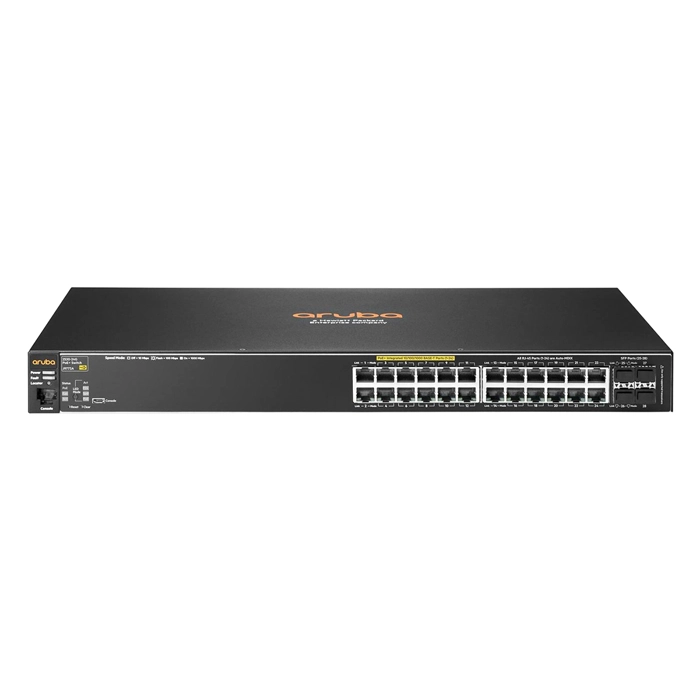

HP J9773A#AKM | Aruba 2530 Series 2530-24G-PoE+ 24 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch
$1,088.34
$1,023.04Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP J9773A#AKM | Aruba 2530 Series 2530-24G-PoE+ 24 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch
- HP Aruba 2530-24G-PoE+ (J9773A#AKM) is a solid pick for campus networks and multi-floor offices with dense wireless AP and VoIP deployments that don't want to overthink the network layer. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. Port-wise, it offers 28 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. Beyond the base ports, there's SFP (mini-GBIC) expansion for uplinks. Settings and firmware are stored in onboard non-volatile memory, so they survive reboots and power cycles. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect stocks the HP Aruba 2530-24G-PoE+ as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
| Product Line | 2530 |
|---|---|
| Model | 2530-24G-PoE+ |
| Product Type | Layer 2 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 28 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP (mini-GBIC) |
| Modular Expansion | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 2 |
| USB Port | Yes |
| Console Management Port | Yes |
Power Description:
| PoE/PoE+/PoE++ Supports | Yes |
|---|---|
| Power Source | Power Supply |
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.75 Inches |
| Width | 17.44 Inches |
| Depth | 13.00 Inches |
| Weight | 8.7 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
