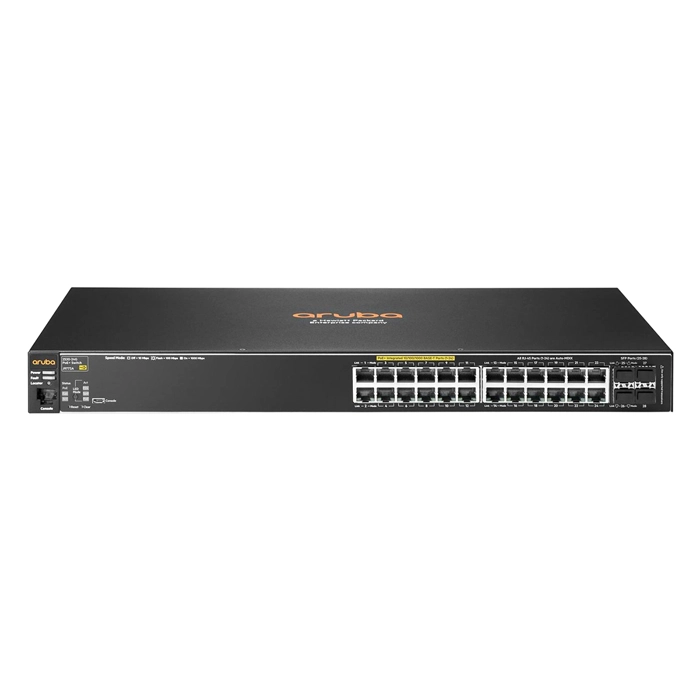

HP J9773AR#B8X | Aruba 2530 Series 2530-24G-PoE+ 24 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No J9773AR#B8X
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,088.34
$1,023.04
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9773AR#B8X | Aruba 2530 Series 2530-24G-PoE+ 24 x RJ-45 PoE+ 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP Aruba 2530-24G-PoE+ (J9773AR#B8X) is the switch IT teams supporting large offices consolidating dozens of PoE endpoints onto fewer switches often turn to when they need something that just works. Campus IT teams, schools and offices deploying wireless APs and IP cameras at scale get the most from this one, since power and data ride the same cable. It has enough headroom for some virtualization or NAS traffic on the same switch too. It brings 28 total network ports, laid out as 24xGigabit EthernetPoE+,RJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. With PoE+ on board, APs, cameras and VoIP phones can draw power directly from the switch instead of separate injectors. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. Beyond the base ports, there's SFP (mini-GBIC) expansion for uplinks. Settings and firmware are stored in onboard non-volatile memory, so they survive reboots and power cycles. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP Aruba 2530-24G-PoE+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line 2530
Model 2530-24G-PoE+
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet PoE+, RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
USB Port Yes
Console Management Port Yes
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 17.44 Inches
Depth 13.00 Inches
Weight 8.7 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 2.3 µs (LIFO 64-byte packets)
  • Throughput: up to 41.6 Mpps (64-byte packets)
  • Switching capacity: 56 Gbps
  • MAC address table size: 16000 entries
