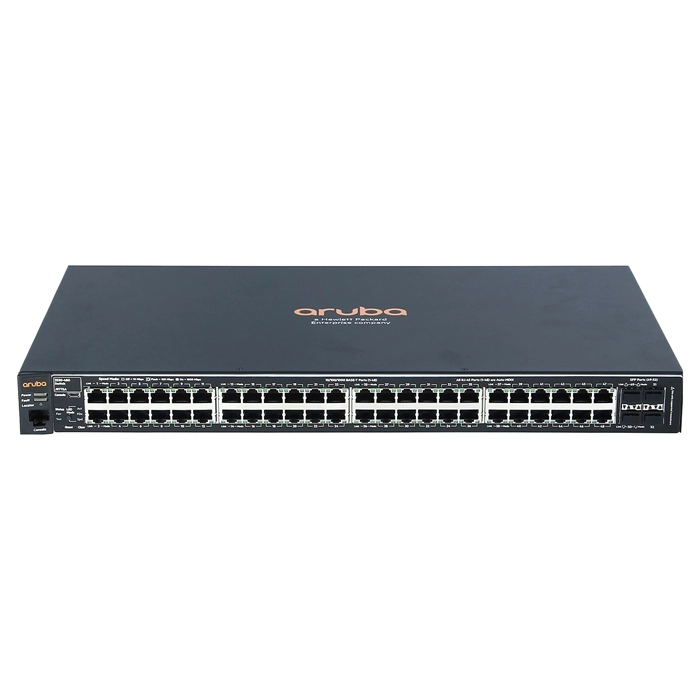

HP J9775AR#B2C | Aruba 2530 Series 2530-48G 48 x RJ-45 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No J9775AR#B2C
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$935.71
$879.57
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9775AR#B2C | Aruba 2530 Series 2530-48G 48 x RJ-45 10/100/1000Base-T and 4 x SFP Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP Aruba 2530-48G (J9775AR#B2C) is a strong, no-nonsense fit for colocation and hosting environments packing dense server racks. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. Port-wise, it offers 52 total network ports, laid out as 48xGigabit EthernetRJ-45 and 4xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. It also adds SFP (mini-GBIC) expansion for uplinks. Settings and firmware are stored in onboard non-volatile memory, so they survive reboots and power cycles. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. Physically, it's rack-mount, in a 1U footprint, rack-friendly, drawing ac input power and exhausting air standard front-to-back airflow, so it fits cleanly next to existing gear. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect ships this HP Aruba switch as genuine stock with full warranty backing and fast delivery nationwide.
Technical Documents:
General Information:
Product Line 2530
Model 2530-48G
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 48 x Gigabit Ethernet RJ-45
  • 4 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 52
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
USB Port Yes
Console Management Port Yes
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 17.44 Inches
Depth 10.00 Inches
Weight 6.8 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 2.3 µs (LIFO 64-byte packets)
  • Throughput up to: 77.3 Mpps (64-byte packets)
  • Switching capacity: 104 Gbps
  • MAC address table size: 16000 entries
