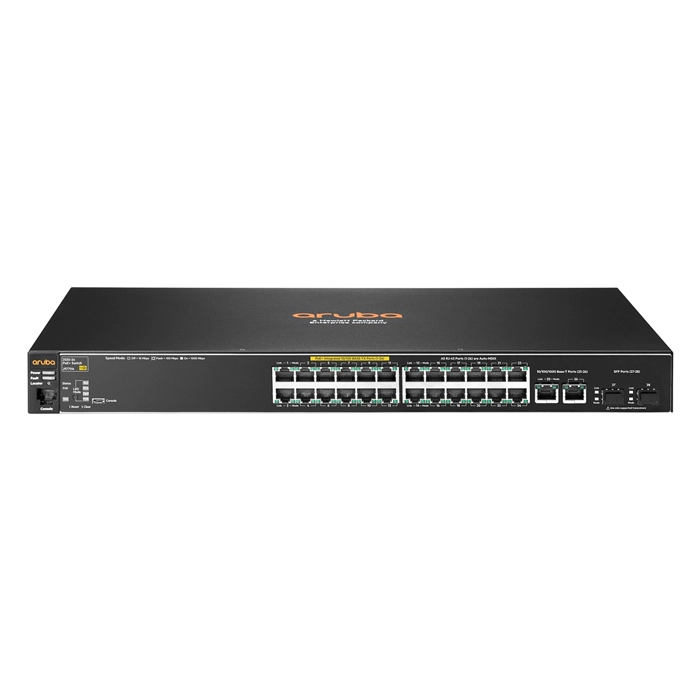

HP J9779AR#B8X | Aruba 2530 Series 2530-24-PoE+ 24 x RJ-45 PoE+ 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch

Part No J9779AR#B8X
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,537.00
$1,444.78
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9779AR#B8X | Aruba 2530 Series 2530-24-PoE+ 24 x RJ-45 PoE+ 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch
  • HP Aruba 2530-24-PoE+ (J9779AR#B8X) makes sense if you're shopping for large offices consolidating dozens of PoE endpoints onto fewer switches. It's a good match for IT teams standardizing wiring closets across a campus, schools and offices deploying wireless APs at scale, and security teams running IP camera networks that need power and data on one cable. Facilities with virtualization or NAS traffic riding the same switch will also benefit from the extra headroom. On the port side, you get 28 total network ports, laid out as 24xFast EthernetPoE+,RJ-45 and 2xGigabit EthernetRJ-45,Uplink and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. Built-in PoE+ power delivery runs access points, IP cameras and VoIP phones straight off the switch, cutting down on wall adapters. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. Beyond the base ports, there's SFP (mini-GBIC) expansion for uplinks. Firmware and configuration live in onboard non-volatile memory, surviving reboots and power cycles. Mounting is straightforward: rack-mount, in a 1U footprint, standard 19-inch rails, ac input power, and standard front-to-back airflow that lines up with typical rack airflow planning. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. When you order the HP Aruba 2530-24-PoE+ through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.
Technical Documents:
General Information:
Product Line 2530
Model 2530-24-PoE+
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Fast Ethernet PoE+, RJ-45
  • 2 x Gigabit Ethernet RJ-45, Uplink
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
USB Port Yes
Console Management Port Yes
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 17.40 Inches
Depth 12.70 Inches
Weight 8.4 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 100 Mb Latency: < 1.7 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 1.1 µs (LIFO 64-byte packets)
  • Throughput: up to 9.5 Mpps (64-byte packets)
  • Switching capacity: 12.8 Gbps
  • MAC address table size: 16000 entries
