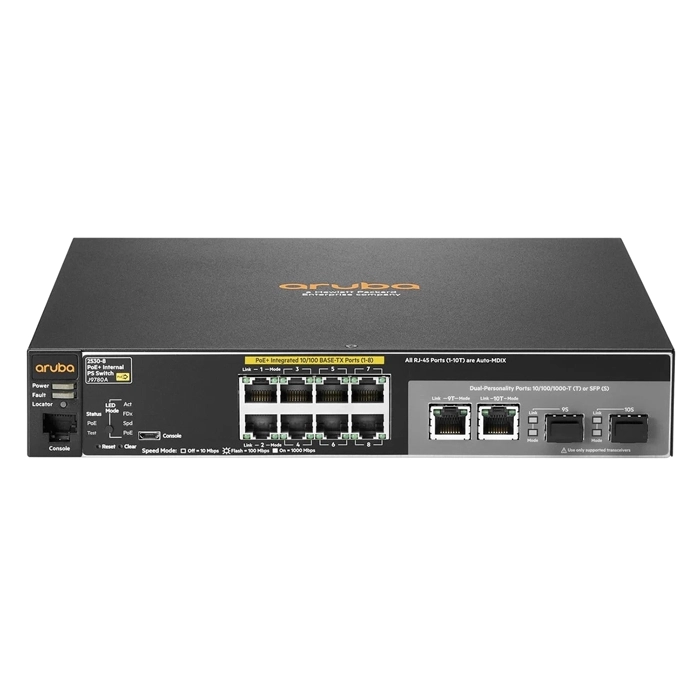

HP J9780AR#B8X | Aruba 2530 Series 2530-8-PoE+ 8 x RJ-45 PoE+ 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch

Part No J9780AR#B8X
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$770.50
$724.27
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9780AR#B8X | Aruba 2530 Series 2530-8-PoE+ 8 x RJ-45 PoE+ 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch
  • HP Aruba 2530-8-PoE+ (J9780AR#B8X) is built to handle home labs and small offices adding a few powered devices to the network without drama. Small offices, retail counters and branch sites with a handful of APs, cameras or VoIP phones are the sweet spot here - enough PoE to skip extra adapters without paying for enterprise scale. It brings 12 total network ports, laid out as 8xFast EthernetPoE+,RJ-45 and 2xGigabit EthernetRJ-45,Uplink and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. It rounds this out with SFP (mini-GBIC) expansion for uplinks. Settings and firmware are stored in onboard non-volatile memory, so they survive reboots and power cycles. PoE+ support means powered endpoints - APs, cameras, phones - plug straight into the switch without extra adapters. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP Aruba 2530-8-PoE+ from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line 2530
Model 2530-8-PoE+
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 8 x Fast Ethernet PoE+, RJ-45
  • 2 x Gigabit Ethernet RJ-45, Uplink
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 12
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
USB Port Yes
Console Management Port Yes
Power Description:
PoE/PoE+/PoE++ Supports Yes
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 10.00 Inches
Depth 6.28 Inches
Weight 2.0 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 100 Mb Latency: < 1.3 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 1.3 µs (LIFO 64-byte packets)
  • Throughput: up to 4.1 Mpps (64-byte packets)
  • Switching capacity: 5.6 Gbps
  • MAC address table size: 16000 entries
