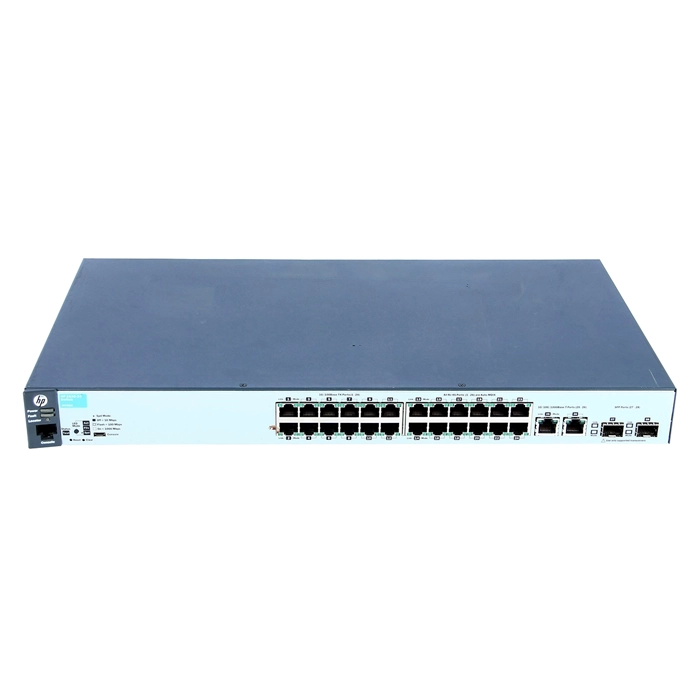

HP J9782AR#ACF | Aruba 2530 Series 2530-24 24 x RJ-45 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch

Part No J9782AR#ACF
Manufacturer HP
Condition New
Availability IN STOCK
Free ground shipping within US up to 10lbs
$1,074.47
$1,010.00
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9782AR#ACF | Aruba 2530 Series 2530-24 24 x RJ-45 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch
  • HP Aruba 2530-24 (J9782AR#ACF) is the switch IT teams supporting media and rendering studios moving large files between workstations and storage often turn to when they need something that just works. Data centers and server rooms running virtualization hosts, NAS/SAN backbones, render farms or AI/ML training nodes are the natural fit, since all of them move heavy traffic between servers. It also works well aggregating traffic from smaller access-layer switches. Wiring is handled by 28 total network ports, laid out as 24xFast EthernetRJ-45 and 2xGigabit EthernetRJ-45,Uplink and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. Beyond the base ports, there's SFP (mini-GBIC) expansion for uplinks. Firmware and configuration live in onboard non-volatile memory, surviving reboots and power cycles. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. On the compatibility side, it's rack-mount, in a 1U footprint, a 19-inch rack fit, takes ac input power, and uses standard front-to-back airflow to match common data-center airflow layouts. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. Buy the HP Aruba 2530-24 from GotoDirect for a genuine, factory-sealed unit with straightforward warranty terms and quick nationwide shipping.
Technical Documents:
General Information:
Product Line 2530
Model 2530-24
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Fast Ethernet RJ-45
  • 2 x Gigabit Ethernet RJ-45, Uplink
  • 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports 28
Number of Expansion Slots 4
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10/100Base-TX
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
USB Port Yes
Console Management Port Yes
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor Rack-mountable
Supported Rack 1U
Height 1.75 Inches
Width 17.40 Inches
Depth 9.70 Inches
Weight 5.7 lbs
Compliance Standards:
Green Compliance
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • IPv6 Ready Certified
  • 100 Mb Latency: < 1.7 µs (LIFO 64-byte packets)
  • 1000 Mb Latency: < 1.1 µs (LIFO 64-byte packets)
  • Throughput: up to 9.5 Mpps (64-byte packets)
  • Switching capacity: 12.8 Gbps
  • MAC address table size: 16000 entries
