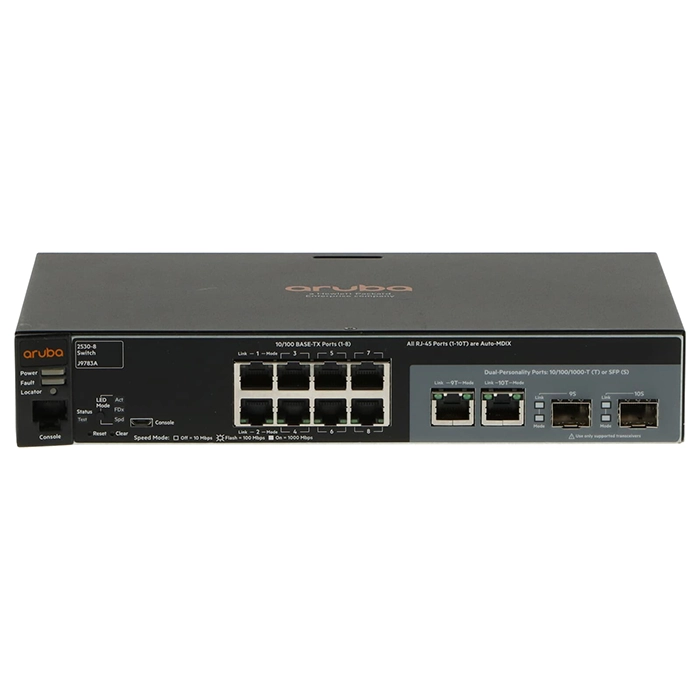

HP J9783A#ABG | Aruba 2530 Series 2530-8 8 x RJ-45 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch

$644.92

Free ground shipping within US up to 10lbs

Payment:

Looking for a bulk discount? Please call us at +1(888)203-4073 and one of our representative will be happy to assist you with part no. J9783A#ABG

HP J9783A#ABG | Aruba 2530 Series 2530-8 8 x RJ-45 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch
HP Aruba 2530-8 (J9783A#ABG) is a solid pick for workgroups and small offices adding extra wired ports without extra configuration that don't want to overthink the network layer. Growing offices and branch sites that want managed features like VLANs, QoS and basic monitoring - but not the cost of a full data-center switch - line up well with this one. Wiring is handled by 12 total network ports, laid out as 8xFast EthernetRJ-45 and 2xGigabit EthernetRJ-45,Uplink and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. On top of that, it has SFP (mini-GBIC) expansion for uplinks. Settings and firmware are stored in onboard non-volatile memory, so they survive reboots and power cycles. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. When you order the HP Aruba 2530-8 through GotoDirect, you get a genuine product, clear warranty terms, and quick delivery across the US.

Technical Documents:

Number of Network Ports/Expansion Slots	8 x Fast Ethernet RJ-45 2 x Gigabit Ethernet RJ-45, Uplink 2 x Gigabit Ethernet SFP (mini-GBIC), Uplink
Total Number of Network Ports	12
Number of Expansion Slots	4
Expansion Slots Details	SFP (mini-GBIC)
Modular Expansion	Yes
Ethernet Technology	Fast Ethernet Gigabit Ethernet
Network Technology	10/100/1000Base-T 10/100Base-TX 1000Base-X
Media Standard	Twisted Pair Optical Fiber
Manageable	Yes
Layer Supported	2
USB Port	Yes
Console Management Port	Yes

Power Source	Power Supply
Power Input	AC-Input

Green Compliance	FCC VCCI

Additional Features	IPv6 Ready Certified 100 Mb Latency: < 1.3 µs (LIFO 64-byte packets) 1000 Mb Latency: < 1.3 µs (LIFO 64-byte packets) Throughput: up to 4.1 Mpps (64-byte packets) Switching capacity: 5.6 Gbps MAC address table size: 16000 entries
