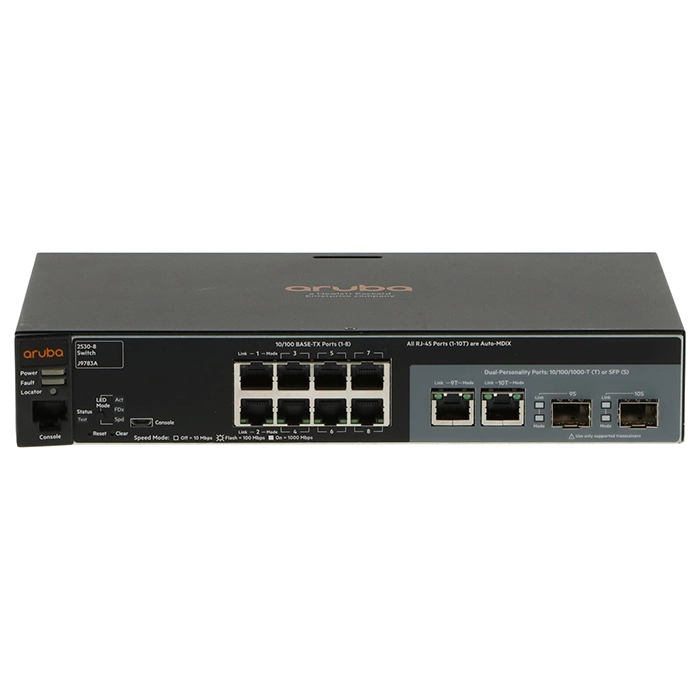

HP J9783A#ACQ | Aruba 2530 Series 2530-8 8 x RJ-45 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch
$686.09
$644.92Free ground shipping within US up to 10lbs
Payment:
WORLDWIDE SHIPPING
BEST PRICES GUARANTEED
EASY CLAIMS & RETURNS
SECURE PAYMENT
TRACK YOUR ORDER
Description:
- HP J9783A#ACQ | Aruba 2530 Series 2530-8 8 x RJ-45 10/100Base-TX and 2 Combo Gigabit SFP Ports Layer 2 Managed Fast Ethernet Network Switch
- HP Aruba 2530-8 (J9783A#ACQ) shows up a lot in shortlists for small networks where simple, unmanaged switching is all that's required, and for good reason. It's well suited to growing offices and branch sites that need managed features - VLANs, QoS, basic monitoring - without the cost or complexity of a full data-center switch. Port-wise, it offers 12 total network ports, laid out as 8xFast EthernetRJ-45 and 2xGigabit EthernetRJ-45,Uplink and 2xGigabit EthernetSFP (mini-GBIC),Uplink, topping out at Gigabit (1GbE) per port. Layer 2 operation keeps the design lean - MAC-table forwarding and VLANs, without routing overhead. It rounds this out with SFP (mini-GBIC) expansion for uplinks. Settings and firmware are stored in onboard non-volatile memory, so they survive reboots and power cycles. For installation, it's rack-mount, in a 1U footprint, compatible with standard 19-inch racks, runs on ac input power, and moves air standard front-to-back airflow for straightforward rack cooling. Also, built-in console access plus a USB port makes setup and firmware recovery easier; twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect sources this HP Aruba switch as a genuine, warranty-backed unit, with fast shipping across the US.
Technical Documents:
General Information:
| Product Line | 2530 |
|---|---|
| Model | 2530-8 |
| Product Type | Layer 2 Switch |
| Package Type | Retail |
| Package Quantity | 1 |
Interfaces/Ports:
| Number of Network Ports/Expansion Slots |
|
|---|---|
| Total Number of Network Ports | 12 |
| Number of Expansion Slots | 4 |
| Expansion Slots Details | SFP (mini-GBIC) |
| Modular Expansion | Yes |
| Ethernet Technology |
|
| Network Technology |
|
| Media Standard |
|
| Manageable | Yes |
| Layer Supported | 2 |
| USB Port | Yes |
| Console Management Port | Yes |
Power Description:
| Power Source | Power Supply |
|---|---|
| Power Input | AC-Input |
Physical Characteristics:
| Form Factor | Rack-mountable |
|---|---|
| Supported Rack | 1U |
| Height | 1.75 Inches |
| Width | 10.00 Inches |
| Depth | 6.28 Inches |
| Weight | 1.8 lbs |
Compliance Standards:
| Green Compliance |
|
|---|
Miscellaneous:
| Additional Features |
|
|---|
