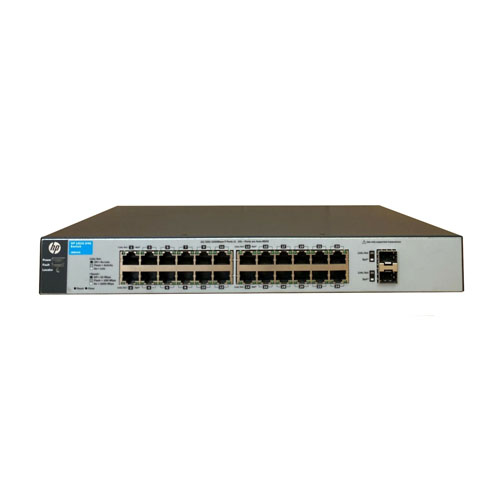

HP J9803AR#ABA | OfficeConnect 1810 Series 1810-24G v2 24 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 2 Managed Gigabit Ethernet Network Switch

Part No J9803AR#ABA
Manufacturer HP
Condition Refurbished
Availability IN STOCK
Free ground shipping within US up to 10lbs
$316.18
$297.21
Worldwide
Shipping
Best Prices
Guaranteed
Secure
Payment
Easy Claims
& Returns
Description:
  • HP J9803AR#ABA | OfficeConnect 1810 Series 1810-24G v2 24 x 10/100/1000Base-T RJ-45 and 2 x SFP (mini-GBIC) Ports Layer 2 Managed Gigabit Ethernet Network Switch
  • HP OfficeConnect 1810-24G v2 (J9803AR#ABA) is worth a close look if you're setting up or upgrading a network for data centers, virtualization hosts and server rooms that need high east-west throughput. This model fits data center and server-room deployments: virtualization hosts, NAS and SAN backbones, render farms and AI/ML training nodes that move large volumes of data between servers. It also works well as an aggregation switch feeding traffic up from access-layer switches. On the port side, you get 26 total network ports, laid out as 24xGigabit EthernetRJ-45 and 2xGigabit EthernetSFP (mini-GBIC), topping out at Gigabit (1GbE) per port. Layer 2 switching keeps things fast and simple: MAC-address forwarding and VLAN segmentation. Beyond the base ports, there's SFP (mini-GBIC) expansion for uplinks. Onboard flash storage of 8 (MB) keeps firmware and config backups local to the switch. It slots into a standard 19-inch rack in a 1U footprint, without any special hardware, runs on ac input power, and follows standard front-to-back airflow for predictable cooling. Also, twisted pair,optical fiber media over SFP (mini-GBIC) covers both copper and fiber runs. GotoDirect stocks the HP OfficeConnect 1810-24G v2 as genuine, warranty-covered hardware, with fast delivery across the US.
Technical Documents:
General Information:
Product Line OfficeConnect 1810
Model 1810-24G v2
Product Type Layer 2 Switch
Package Type Retail
Package Quantity 1
Interfaces/Ports:
Number of Network Ports/Expansion Slots
  • 24 x Gigabit Ethernet RJ-45
  • 2 x Gigabit Ethernet SFP (mini-GBIC)
Total Number of Network Ports 26
Number of Expansion Slots 2
Expansion Slots Details SFP (mini-GBIC)
Modular Expansion Yes
Ethernet Technology Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Media Standard
  • Twisted Pair
  • Optical Fiber
Manageable Yes
Layer Supported 2
Flash Storage Memory 8 MB
Power Description:
Power Source Power Supply
Power Input AC-Input
Physical Characteristics:
Form Factor
  • Standalone
  • Rack-mountable
  • Wall-mountable
Supported Rack 1U
Height 1.73 Inches
Width 12.99 Inches
Depth 6.81 Inches
Weight 2.54 lbs
Compliance Standards:
Green Compliance
  • RoHS
  • WEEE
  • FCC
  • VCCI
Miscellaneous:
Additional Features
  • 100 Mb Latency: < 3.3 µs (64-byte packets)
  • 1000 Mb Latency: < 2.2 µs (64-byte packets)
  • Throughput: up to 38.7 Mpps
  • Switching capacity: 52 Gbps
  • MAC address table size: 8000 entries
